ASUS ROG Strix B850-A Gaming motherboard SPECIFICATION:
| CATEGORY | SPECIFICATION |
|---|---|
| Model No | ROG STRIX B850-A GAMING WIFI |
| Part No | 90MB1J50-M0EAY0 |
| Chipset | AMD B850 Chipset |
| Form Factor | ATX (12 x 9.6 in / 30.5 x 24.4 cm) |
| Socket Compatibility | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Memory Type | 4 x DIMM, max 256GB DDR5, ECC/Non-ECC, Dual Channel, Supports EXPO & AEMP, up to 8000+MT/s (OC) |
| Graphics | 1 x DisplayPort (8K@30Hz), 1 x HDMI™ port (4K@60Hz), VGA depends on CPU/GPU |
| Storage Compatibility | 4 x M.2 slots, 2 x SATA 6Gb/s ports, AMD RAIDXpert2 RAID 0/1/5/10 support varies by CPU |
| Wireless & Bluetooth | Wi-Fi 7 (2×2, up to 2.9Gbps), Bluetooth v5.4 |
| Ethernet | 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |

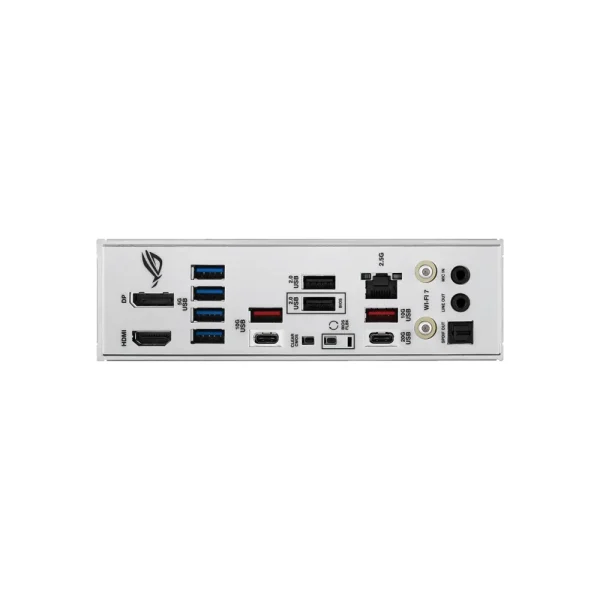

| USB Ports | Rear: 1 x USB 20Gbps Type-C, 3 x USB 10Gbps (2 Type-A + 1 Type-C), 4 x USB 5Gbps Type-A, 2 x USB 2.0 Front: 1 x USB 10Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Expansion Slots | PCIe 5.0 x16 (CPU-dependent, Q-Release Slim), PCIe 4.0 x16 (B850, x4), 2 x PCIe 3.0 x1 |
| Audio | ROG SupremeFX 7.1 HD Audio CODEC ALC4080, 120dB SNR playback, 110dB SNR recording, SupremeFX Shielding, Savitech SV3H712 AMP, Rear optical S/PDIF |
| Internal I/O Connectors | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fans, 24-pin Main Power, 2 x 8-pin CPU Power, 4 x M.2, 2 x SATA, USB headers, 3 x Addressable Gen2, Thunderbolt™ header, Front Panel headers, Thermal Sensor |
| Special Features | Extreme Engine Digi+, 5K Black Capacitors, M.2 Q-Latch/Release/Slide, PCIe SafeSlot, Q-DIMM, Q-LED, Aura Sync, BIOS FlashBack™, Clear CMOS, ProCool, Pre-mounted I/O shield |

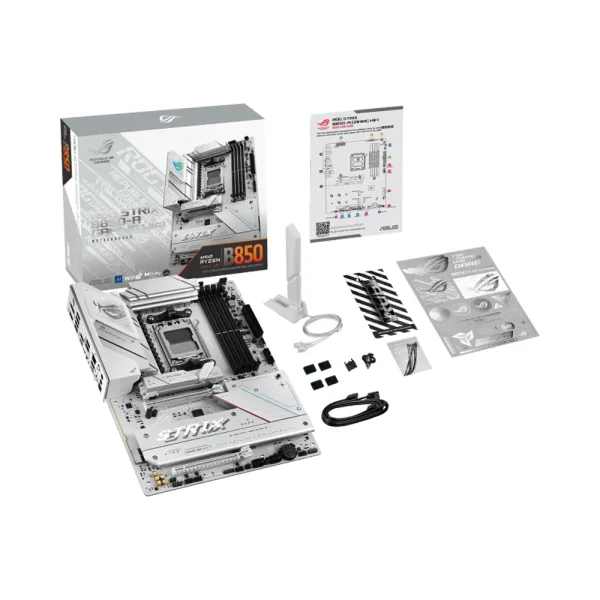

| Package Content | 2 x SATA 6Gb/s cables, ASUS Wi-Fi antenna, Cable ties, M.2 Q-Latch & Q-Slide, ROG key chain, ROG Strix stickers, 4 x M.2 rubbers, Quick start guide |
| Product Size | 12 x 9.6 in (30.5 x 24.4 cm) |
| Warranty | 1 Year (Manufacturer Policy) |
