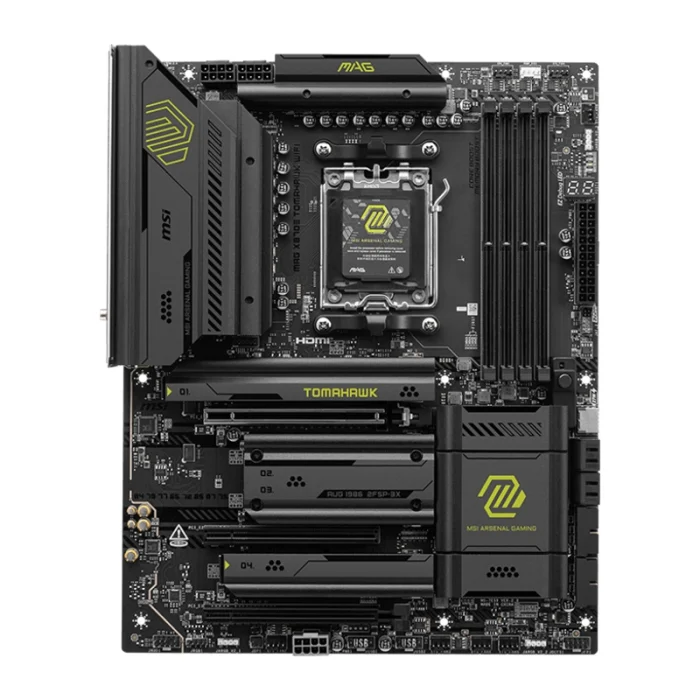

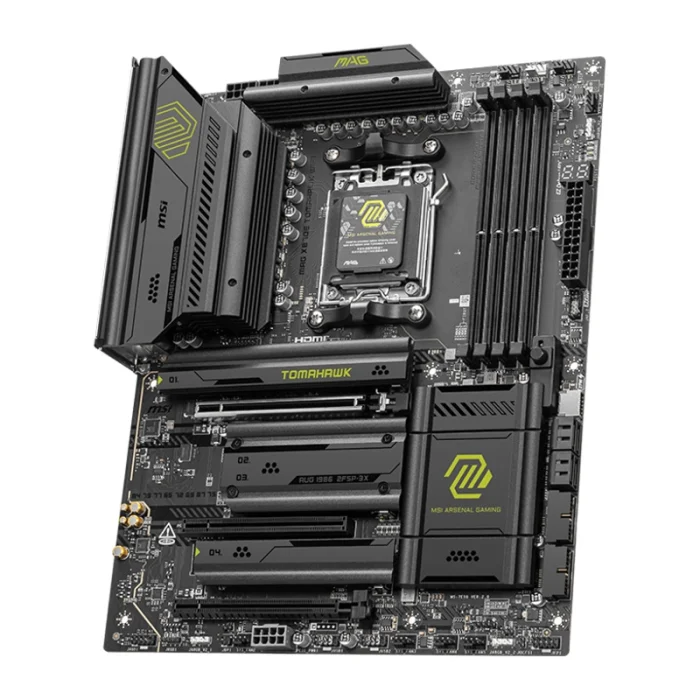

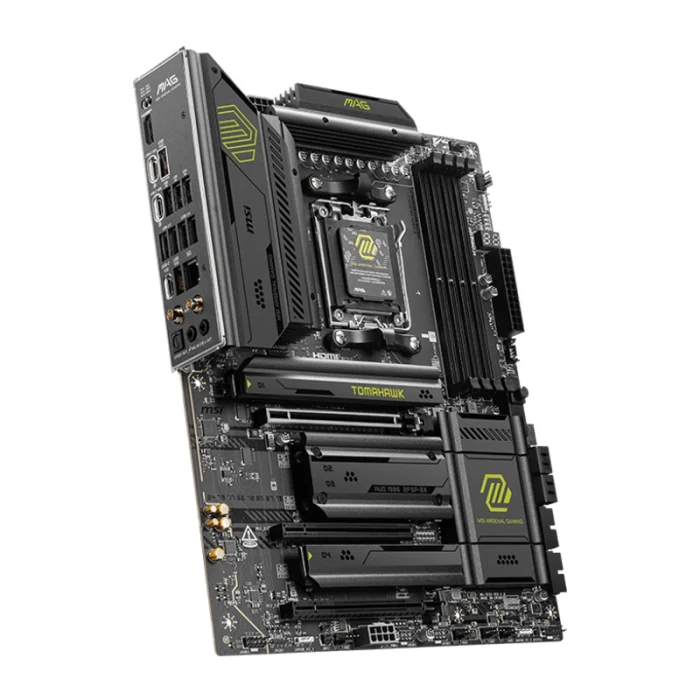

MSI MAG X870E Tomahawk WiFi DDR5 Motherboard Specifications:
| Category | Specification |
|---|---|
| Model No | MSI X870E Tomahawk WiFi PCIe 5.0 DDR5 AM5 |
| Part No | 911-7E59-006 |
| Chipset | AMD X870E |
| Form Factor | ATX |
| Dimensions | 243.84 × 304.8 mm |
| Socket | AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| LAN | Realtek® 8126 5G LAN |
| Wireless | Wi-Fi 7 (M.2 Key-E, pre-installed) |
| Bluetooth | Bluetooth® 5.4 |
| Wireless Features | MU-MIMO, 2.4/5/6GHz, up to 5.8Gbps, 802.11 a/b/g/n/ac/ax/be, MLO, 4KQAM |
| Graphics Output | 1× HDMI 2.1 (8K@60Hz), 2× USB-C DisplayPort (4K@60Hz) |
| Memory Slots | 4× DDR5 UDIMM |
| Max Memory | Up to 256GB |
| Memory Speed | DDR5 8400+ (OC) / 5600–4800 (JEDEC) |
| Memory Features | Dual-Channel, AMD EXPO™, Non-ECC, Un-buffered, CUDIMM support |
| M.2 Slots | 4× M.2 (PCIe 5.0 x4 & PCIe 4.0 x4) |
| SATA Ports | 4× SATA 6Gb/s |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x1 |

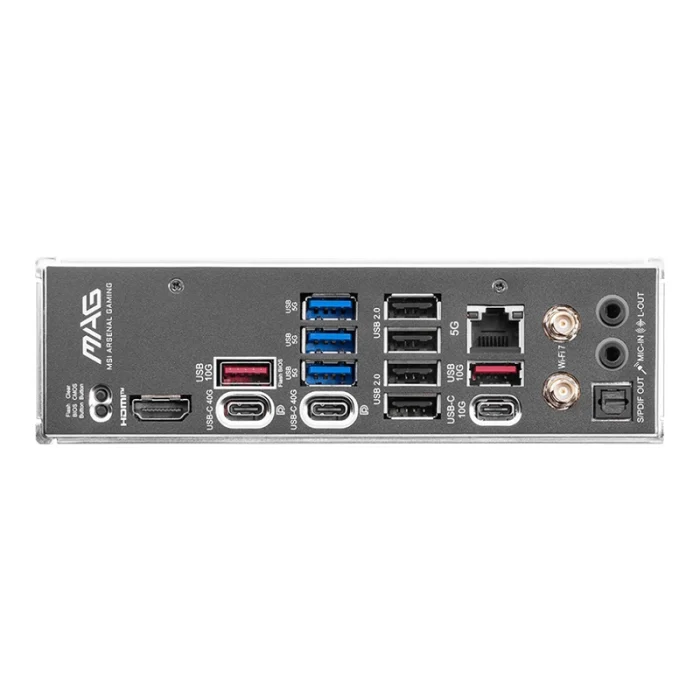

| USB (Rear) | USB 40Gbps Type-C, USB 10Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A, USB 2.0 |
| USB (Front / Internal) | USB 20Gbps Type-C, USB 5Gbps Type-A, USB 2.0 |
| Audio | Realtek® ALC4080, 7.1-Channel USB HD Audio, S/PDIF |
| Internal Connectors | ATX Power, Dual CPU Power, PCIe Power, Fan/Pump Headers, RGB & ARGB, TPM 2.0 |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1/5/10 (NVMe) |
| Debug Features | EZ Debug LED, EZ Digit Debug LED |
| Back Panel Features | Clear CMOS, Flash BIOS Button |
| Warranty | 1 Year (As per Manufacturer Policy) |
