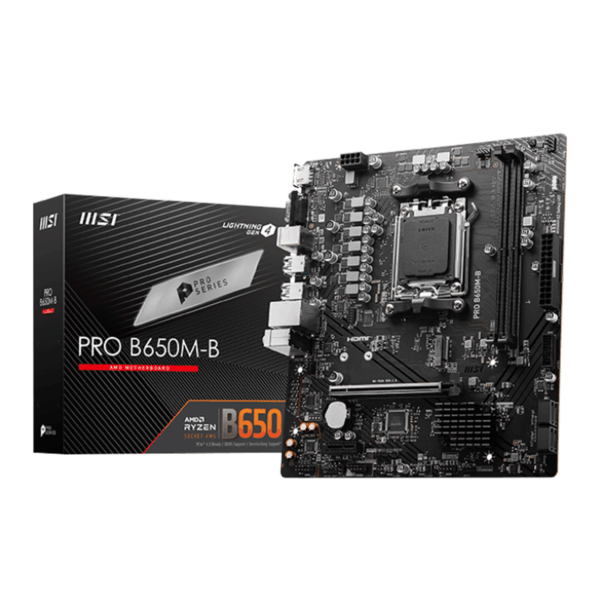

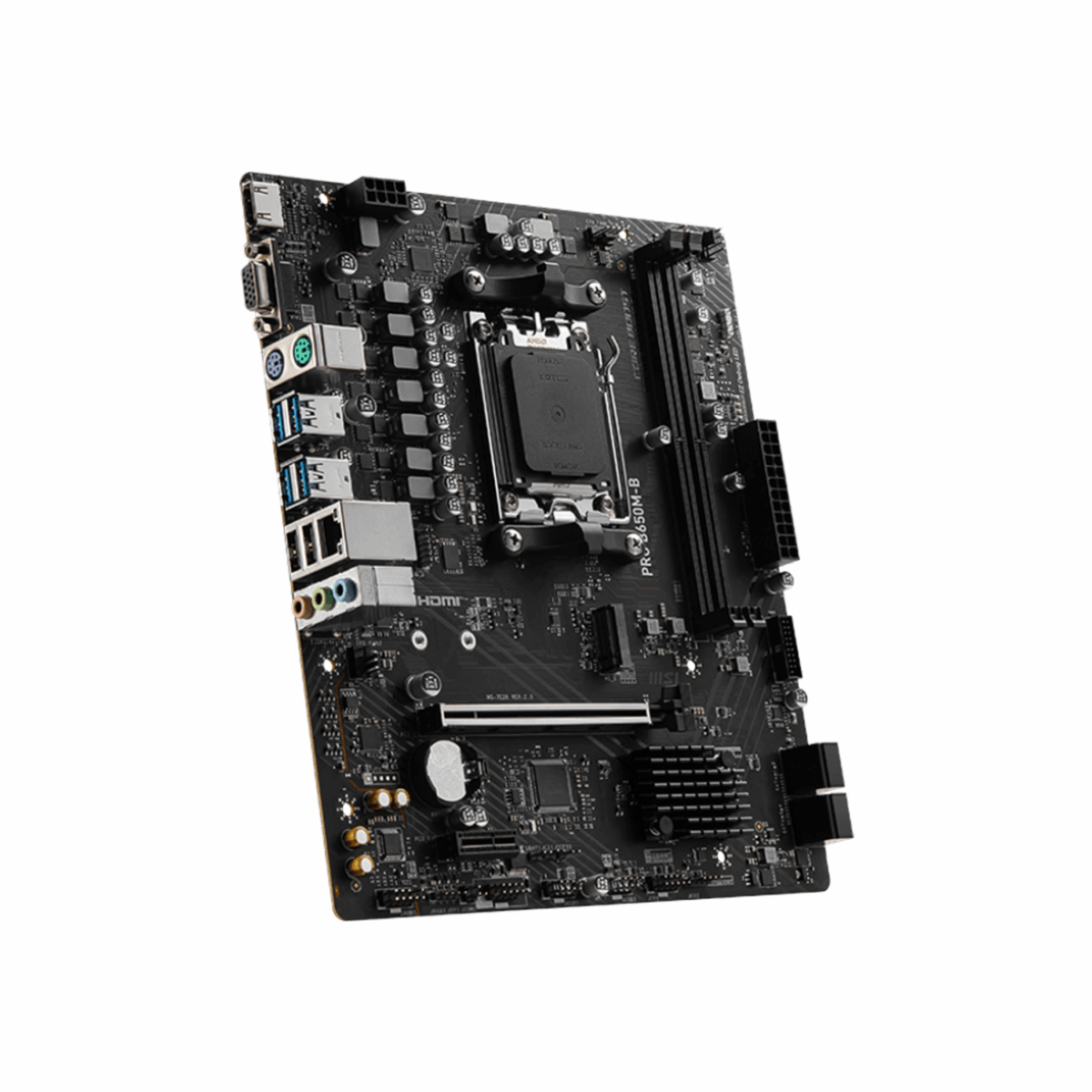

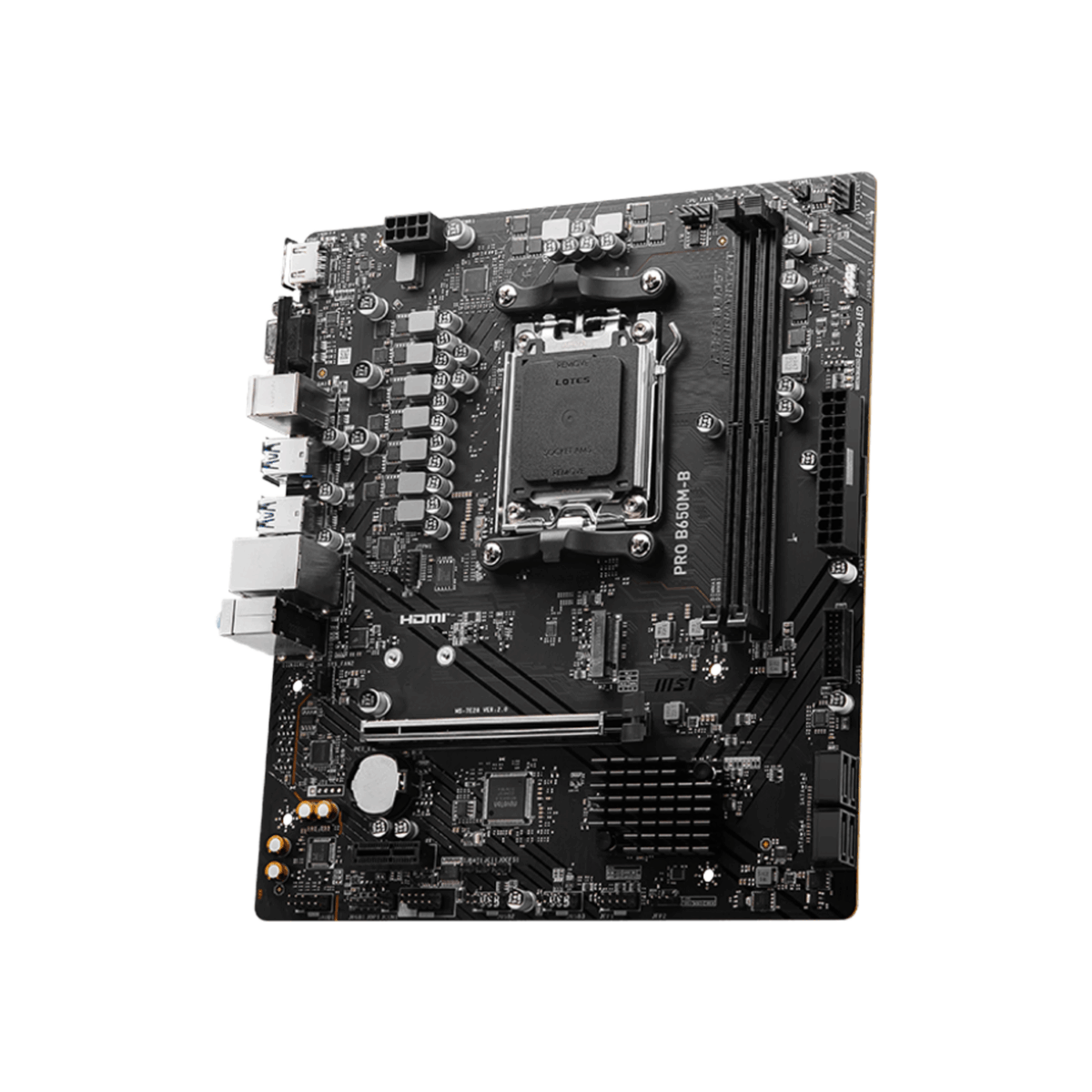

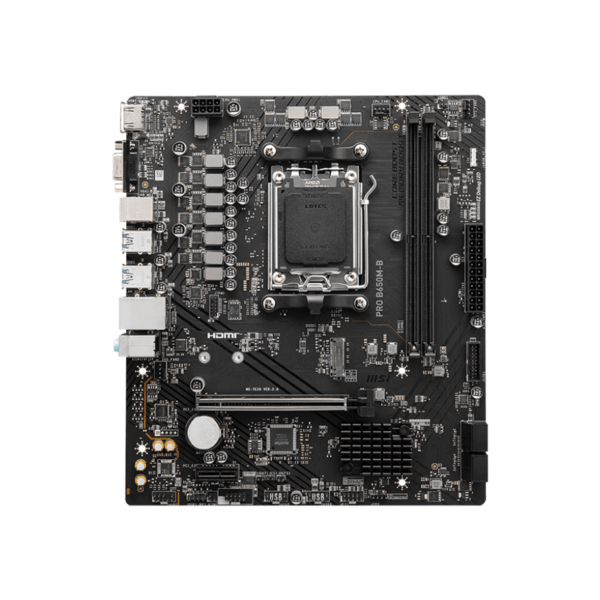

MSI PRO B650M-B DDR5 Gaming Motherboard:
| Specification | Details |
|---|---|
| Model No | MSI Pro B650M-B AMD DDR5 Gaming Motherboard |
| Part No | 911-7E28-020 |
| Chipset | AMD B650 |
| Form Factor | mATX (215mm x 243.84mm) |
| Socket Compatibility | Socket AM5 – Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Graphics Outputs | 1x HDMI™ 2.1 (4K @ 60Hz) 1x VGA (2048×1536 @ 50Hz / 2048×1280 @ 60Hz / 1920×1200 @ 60Hz) |
| Memory Support | 2x DDR5 DIMM, up to 128GB Speeds: DDR5 6800+(OC) / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 MHz (JEDEC) Dual-Channel, Non-ECC Unbuffered, AMD EXPO Support |
| Storage | 1x M.2 (PCIe 4.0 x4, supports 2280/2260 devices) 4x SATA 6Gb/s Ports |
| Expansion Slots | 1x PCIe x16 slot (Gen 4.0 – x16/x8/x4 depending on CPU) 1x PCIe x1 slot (Gen 3.0) |

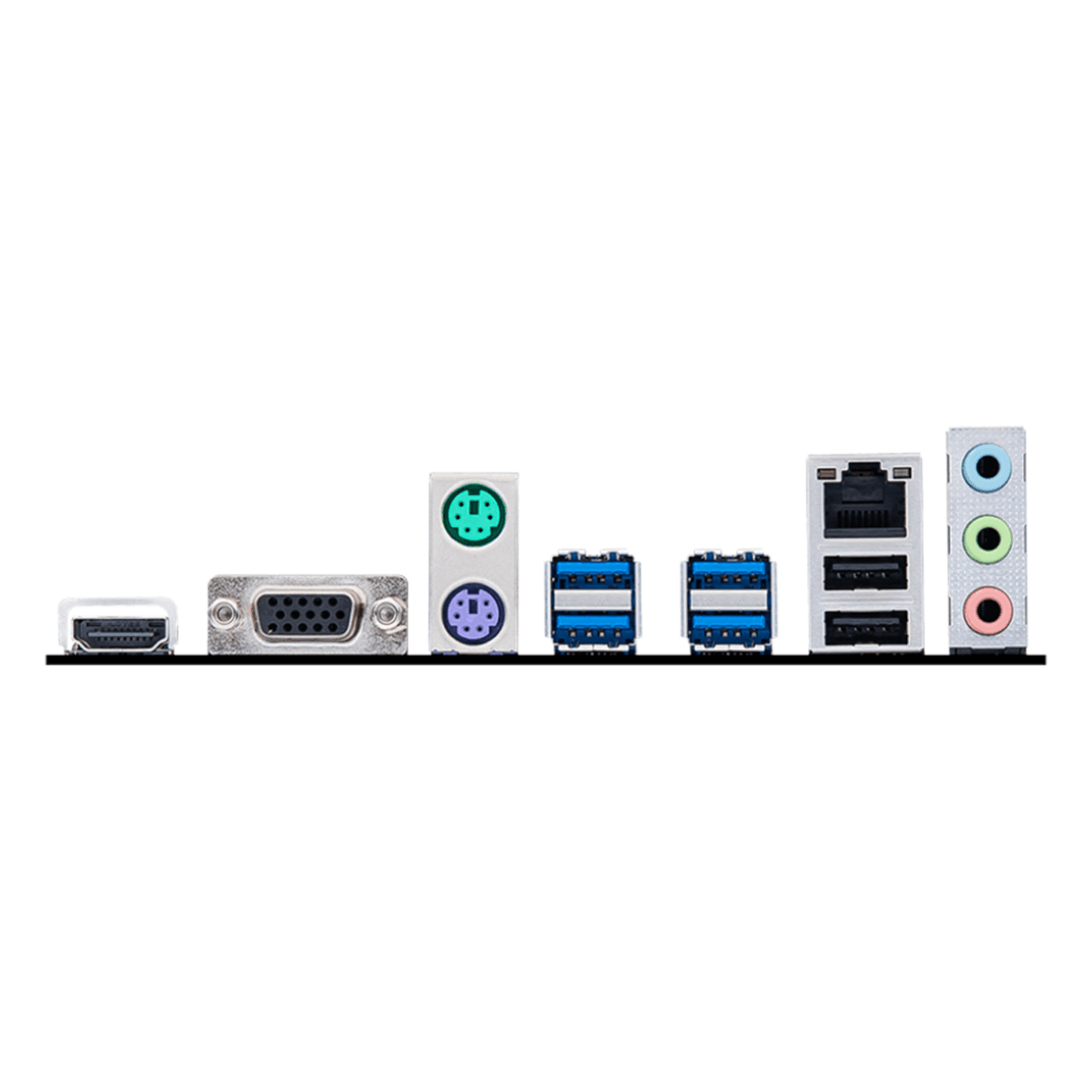

| Back Panel I/O Ports | 1x HDMI™ 1x VGA Keyboard/Mouse 1x LAN port Audio connectors USB Ports: 2x USB 2.0, 4x USB 3.2 Gen 1 (5Gbps Type-A) |
| USB (Front/Rear) | Rear: 2x USB 2.0, 4x USB 5Gbps Type-A Front: 4x USB 2.0, 2x USB 5Gbps Type-A |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| Internal I/O Connectors | ATX Power, CPU Power, 1x CPU Fan, 2x System Fan, Front Panel, Chassis Intrusion, Front Audio, COM Port, TPM 2.0 Header, RGB & ARGB Headers, USB headers |
| LED Features | 4x EZ Debug LED |
| RAID Support | RAID 0, RAID 1, RAID 10 (for SATA devices) |
| Warranty | 1 Year (As per Manufacturer Policy) |
