| Brand / Model |

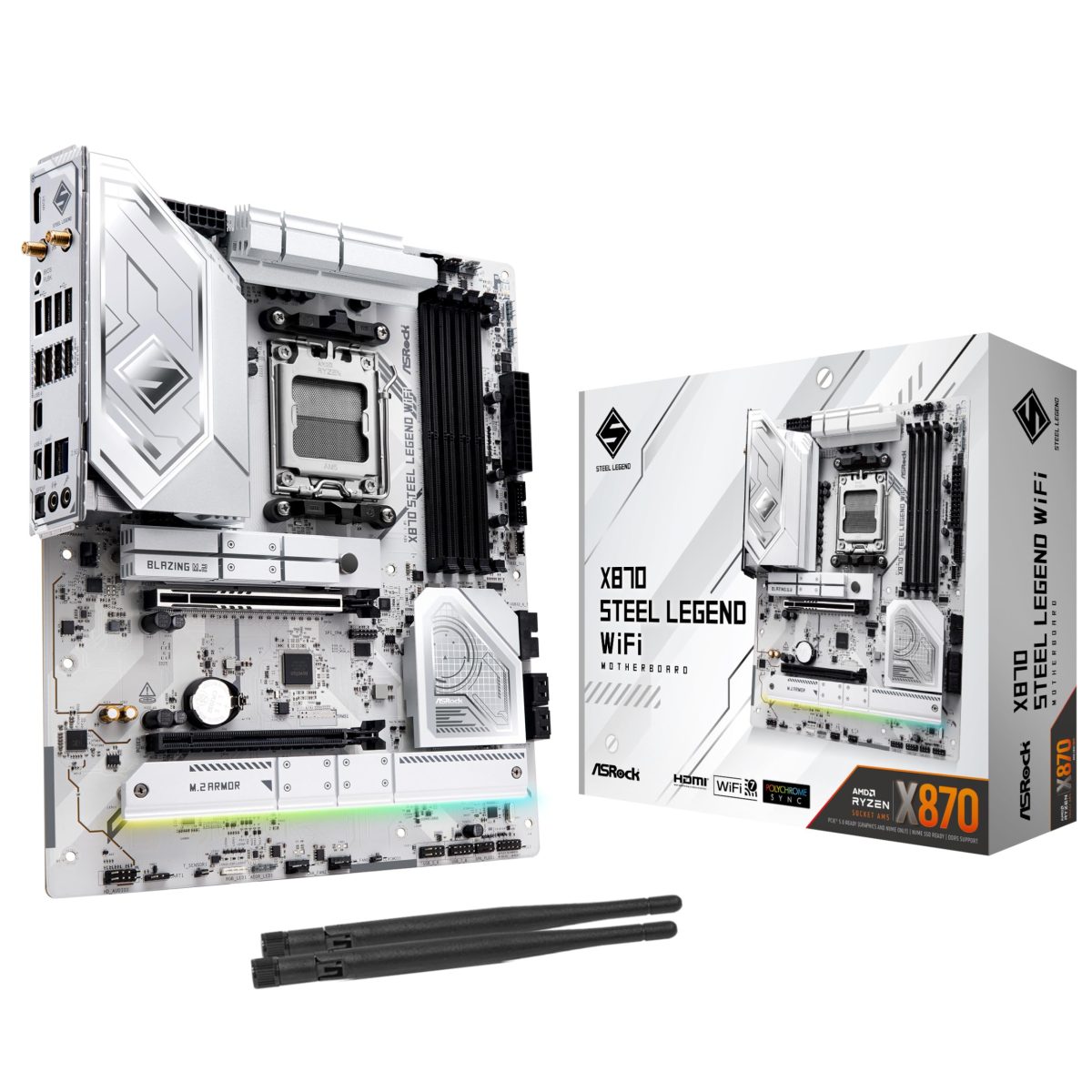

ASRock X870 STEEL LEGEND WIFI |
| CPU Support |
AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5) |
| Chipset |
AMD X870 |
| Memory Support |
4 x DDR5 DIMM slots, up to 256GB, DDR5 up to 8200MHz (OC) |
| Graphics Output |
1 x HDMI 2.1 (4K@120Hz), 2 x USB4 (8K@30Hz) |
| Audio |
Realtek ALC897 7.1 CH HD Audio, Nahimic Audio |
| Expansion Slots |
1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4, 1 x PCIe 4.0 x1, 1 x M.2 (WiFi/BT) |
| Storage Options |
4 x M.2 (PCIe 5.0/4.0, SATA3), 4 x SATA3 |
| RAID Support |
RAID 0/1/5/10 for both SATA & NVMe M.2 |
| Networking |
Wi-Fi 6E (802.11axe), 2.5G LAN, Bluetooth 5.3, MU-MIMO |
| USB Ports |
2 x Thunderbolt 4 Type-C, USB 3.2 Gen2x2/Gen2/Gen1, USB 2.0 (Total: 17 USB ports) |
| Form Factor |
ATX (30.5 cm x 24.4 cm), 8-layer PCB |
| Unique Features |
PCIe Gen5, 14+1+1 Power Phase, Dr.MOS, Enlarged Heatsink, ASRock Utilities |
| Warranty |
1 Years |
