| Model No |

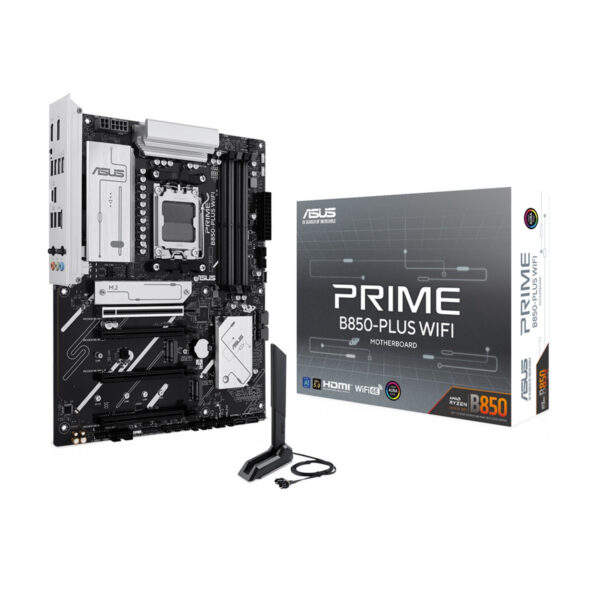

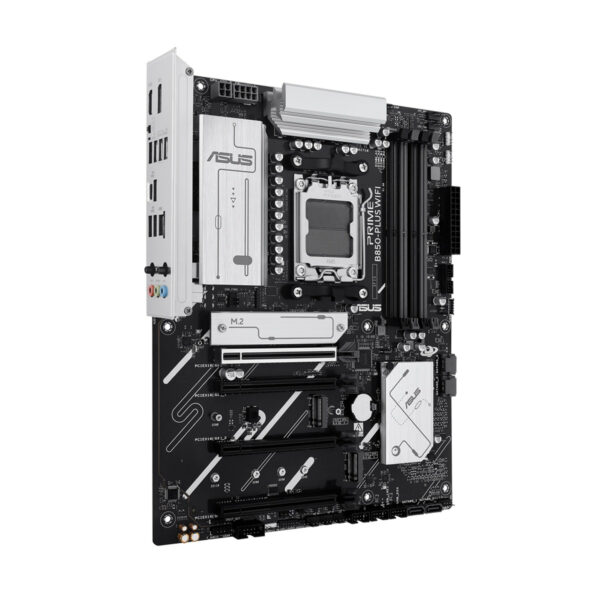

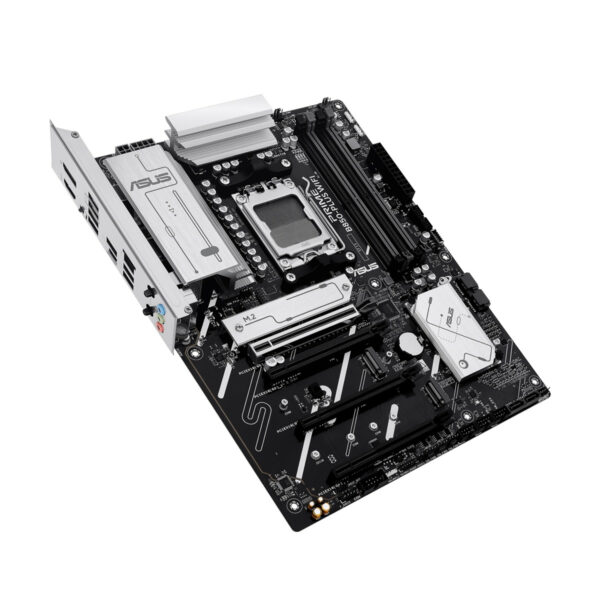

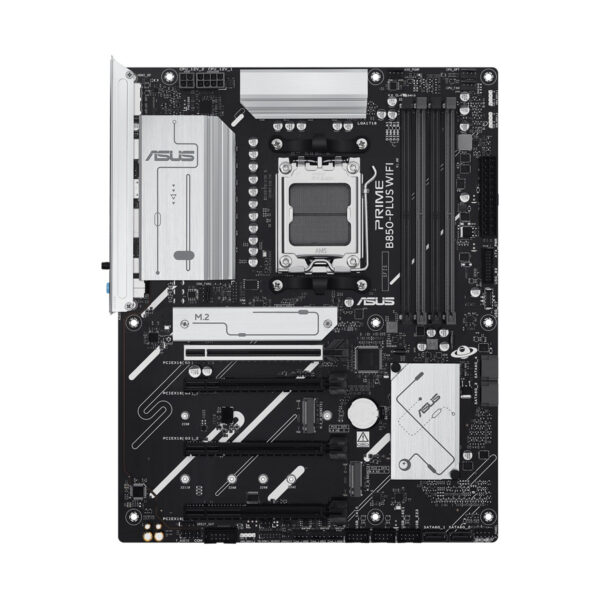

Asus Prime B850-PLUS WiFi AI PC Ready AMD DDR5 Gaming Motherboard |
| Part No |
90MB1L80-M0EAY0 |
| Form Factor |
ATX |
| Chipset |
AMD B850 |
| Socket Support |
AMD AM5 (Ryzen™ 9000 / 8000 / 7000 Series) |
| Memory |
4× DDR5 DIMM slots, up to 256GB, 8000+ MT/s (OC), Dual Channel, Supports EXPO & AEMP |
| Networking |
Wi-Fi 6E (2×2, 2.4/5/6GHz), Bluetooth 5.3, 2.5Gb Ethernet |
| Storage |
3× M.2 slots (PCIe 5.0/4.0), 4× SATA 6Gb/s ports, RAID 0/1/5/10 support |
| Expansion Slots |
1× PCIe 5.0 x16, 1× PCIe 4.0 x16, 2× PCIe 3.0 x16 |

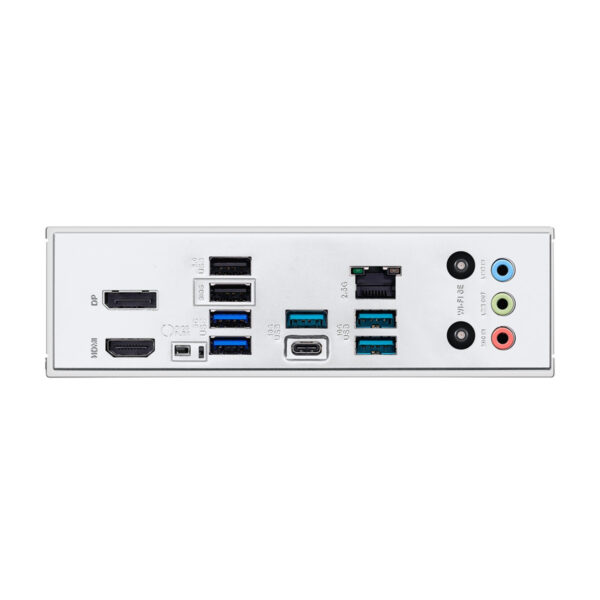

| USB Ports (Rear) |
1× USB-C 10Gbps, 3× USB-A 10Gbps, 2× USB-A 5Gbps, 2× USB 2.0 |
| USB Ports (Front) |
1× USB-C 5Gbps, 1× USB 5Gbps header (2 ports), 3× USB 2.0 headers (6 ports) |
| Display Outputs |
1× HDMI, 1× DisplayPort |
| Audio |
Realtek 7.1 HD Audio CODEC, Premium capacitors, Audio shielding |
| Cooling & Power |
1× CPU Fan, 1× CPU OPT, 1× AIO Pump, 4× Chassis Fan headers, 8-pin + 4-pin CPU Power |
| RGB & Headers |
3× ARGB Gen 2 headers, 1× Thunderbolt (USB4®) header |
| Special Features |
ASUS 5X Protection III, Q-Design, Pre-mounted I/O, BIOS FlashBack™, Aura Sync RGB |
| Package Contents |
2× SATA Cables, WiFi Antenna, M.2 Screws, Quick Start Guide |
| Dimensions |
30.5 × 24.4 cm (ATX) |
| Warranty |
1 Year (As per Manufacturer Policy) |
