ASUS ROG MAXIMUS Z890 APEX DDR5 Motherboard Specification:
| Specification | Details |
|---|---|
| Model No | ROG MAXIMUS Z890 APEX |
| Part No | 90MB1IP0-M0EAY0 |
| Form Factor | ATX (12″ x 9.6″) |
| CPU Socket | LGA1851, Supports Intel® Core™ Ultra Processors (Series 2), Turbo Boost 2.0/3.0 |
| Chipset | Intel® Z890 |
| Memory | 2× DDR5 DIMM, up to 128GB, Dual Channel, Supports XMP & AEMP III, up to 9600+ MT/s (OC) |

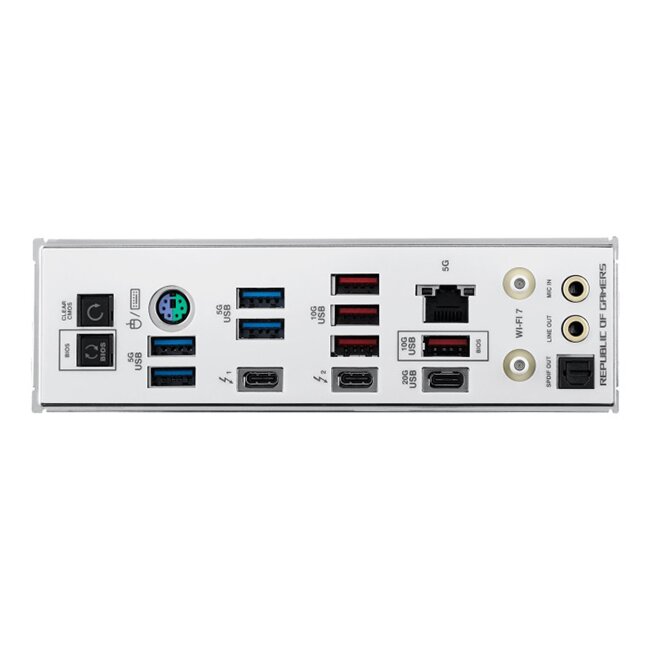

| Graphics/Ports | 2× Thunderbolt™ 4 (USB-C) supporting DisplayPort, up to 8K/60Hz, 1× USB 20Gbps, Display outputs via CPU/Thunderbolt |
| Expansion Slots | 2× PCIe 5.0 x16, 2× PCIe 4.0 x4 |
| Storage | 6× M.2 slots, 4× SATA 6Gb/s, RAID support |
| Ethernet | 1× Realtek 5Gb, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2×2, 320MHz, up to 5.8Gbps), Bluetooth 5.4 |
| USB Ports | Rear: 11 (incl. Thunderbolt 4 & USB-C), Front: 10 (incl. USB-C w/ Quick Charge 4+) |
| Audio | ROG SupremeFX 7.1 HD Audio (ALC4080), 120dB SNR output, 384kHz playback, premium audio caps, Savitech AMP, Gold-plated jacks |
| Special Features | Extreme OC Kit, Extreme Engine Digi+, Q-Design, ASUS Thermal Solution, Aura Sync RGB, Dual BIOS, ProCool II, SafeSlot & SafeDIMM |
| Software Features | ROG CPU-Z, Dolby Atmos, Armoury Crate, Fan Xpert 4 AI, Aura Creator, Turbo Vcore, ASUS AI Advisor, WinRAR trial, Adobe Creative Cloud trial |
| Package Content | ROG DIMM.2 with heatsink, ROG Memory Fan Kit, Wi-Fi Q-Antenna, Q-Connector, M.2 screws & pads, USB drive with utilities, Quick start guide |
| Warranty | 1 Year (Manufacturer Policy) |
