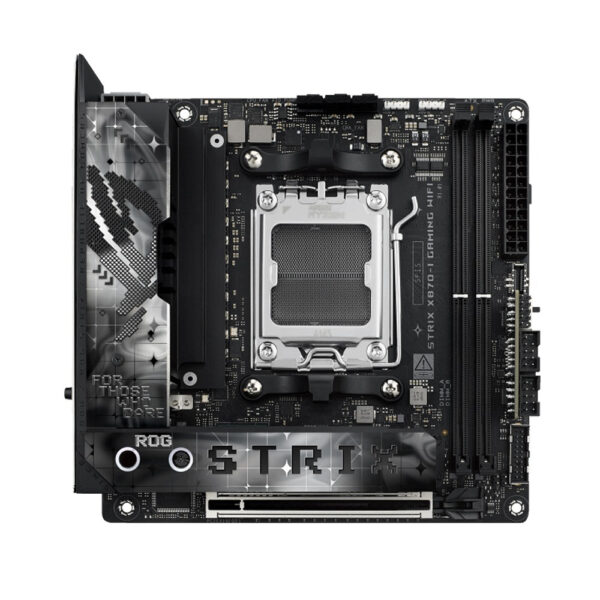

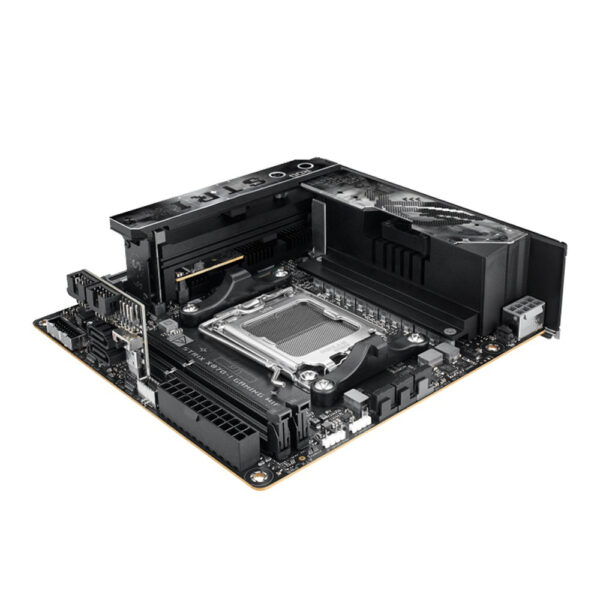

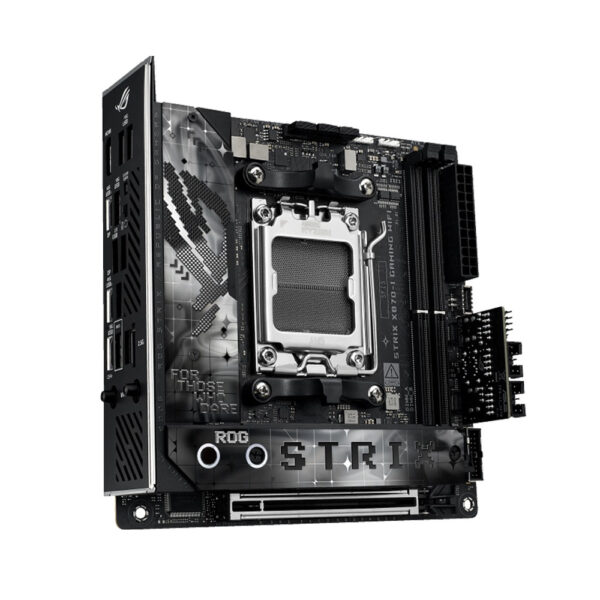

Asus ROG Strix X870-I WiFi 7 Mini-ITX Motherboard based on the specifications you provided:
| Specification | Details |
|---|---|
| Model No | ROG STRIX X870-I GAMING WIFI |
| Part No | 90MB1IW0-M0EAY0 |
| Chipset | AMD X870 |
| Form Factor | Mini-ITX (17 cm × 17 cm) |
| Socket Compatibility | AMD Socket AM5, supports Ryzen 9000/8000/7000 Series Desktop CPUs |
| Wireless & Bluetooth | Wi-Fi 7 (2×2, 802.11be, up to 6.5 Gbps), Bluetooth 5.4 |
| LAN | 1 x Intel 2.5Gb Ethernet, ASUS LANGuard |
| Memory Type | 2 x DDR5 DIMM slots, up to 128GB, dual-channel, supports AMD EXPO & ASUS AEMP, OC up to 8600+ MT/s |
| Onboard Graphics | 1 x HDMI, 2 x USB4 Type-C ports (DP Alt Mode, max 4K@60Hz) |
| Storage Compatibility | 2 x M.2 slots (PCIe 5.0/4.0 depending on CPU), 2 x SATA 6Gb/s ports, RAID 0/1/10 support |

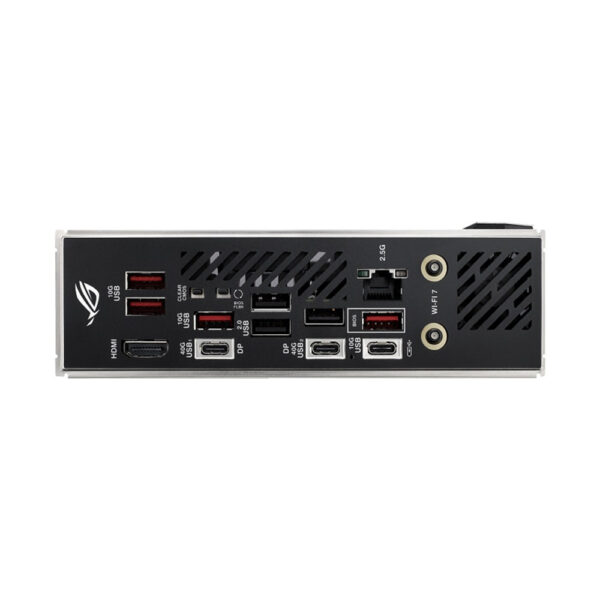

| Back Panel I/O Ports | 2 x USB4 Type-C, 5 x USB 10Gbps (4 Type-A + 1 Type-C), 3 x USB 2.0, 1 x HDMI, 1 x Intel 2.5Gb LAN, Wi-Fi module, BIOS FlashBack, Clear CMOS |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x16 (Ryzen 8000, x8/x4 mode) |
| Audio | ROG Strix Hive II, ESS SABRE9260Q DAC, silver-plated jacks, dedicated audio PCB layers |
| Internal I/O Connectors | CPU & chassis fan headers, 24-pin + 8-pin CPU power, 2 x M.2 slots, USB headers, SATA ports, Thermal sensor headers, FlexKey, Power button |

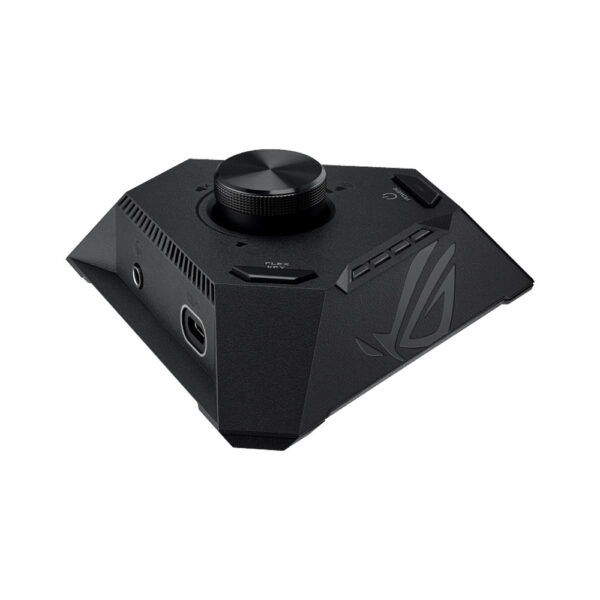

| Special Features | ASUS Q-Design (SafeSlot, Q-DIMM, Q-LED), Aura Sync RGB, BIOS FlashBack, Clear CMOS, FlexKey, ROG STRIX HIVE II, thermal solutions including M.2 heatsinks |
| Warranty | 1 Year (As per Manufacturer Policy) |
