Asus TUF Gaming B850-Plus AMD Ryzen WiFi 7 DDR5 Gaming Motherboard:
| CATEGORY | SPECIFICATION |
|---|---|
| Model No | Asus TUF Gaming B850-Plus AMD Ryzen WiFi 7 DDR5 Gaming Motherboard |
| Part No | 90MB1J30-M0EAY0 |
| Chipset | AMD B850 |
| Form Factor | ATX |
| Socket Compatibility | AMD Socket AM5 (Supports Ryzen 7000, 8000 & 9000 Series Desktop Processors) |
| Wireless & Bluetooth | Wi-Fi 7 (2×2, 802.11be, up to 2.9 Gbps), Bluetooth v5.4 |
| Ethernet | Realtek 2.5Gb Ethernet with TUF LANGuard |
| Memory Type | 4 × DIMM slots, up to 256GB DDR5, Dual Channel, EXPO & AEMP Support, up to 8000+ MT/s (OC) |
| Storage Compatibility | 3 × M.2 slots, 4 × SATA 6Gb/s ports, AMD RAIDXpert2 support |

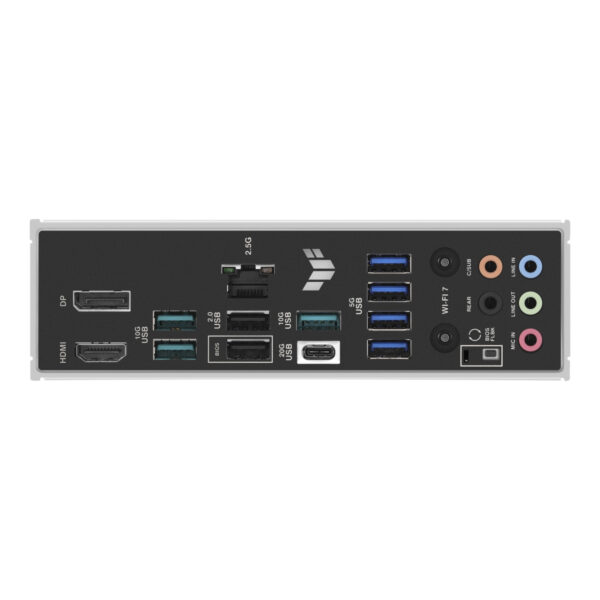

| Back Panel I/O Ports | 1 × USB 20Gbps Type-C, 3 × USB 10Gbps Type-A, 4 × USB 5Gbps Type-A, 2 × USB 2.0 Type-A, 1 × DisplayPort, 1 × HDMI, Wi-Fi module, 1 × 2.5Gb Ethernet, 5 × Audio Jacks, BIOS FlashBack™ button |
| Front USB Ports | 1 × USB 10Gbps Type-C, 1 × USB 5Gbps header (supports 2 ports), 2 × USB 2.0 headers (supports 4 ports) |
| Expansion Slots | 1 × PCIe 5.0 x16 (Ryzen 9000/7000), 1 × PCIe 4.0 x16 (Ryzen 8000), 1 × PCIe 4.0 x16 (B850), 2 × PCIe 4.0 x1 |
| Audio | Realtek ALC1220P 7.1 HD Audio, Internal Amp, Jack-detection, Multi-streaming, 32-bit/192kHz support, Audio Shielding, Premium Caps, Audio Cover, De-pop circuit |
| Internal I/O Connectors | CPU & Chassis Fan Headers, AIO Pump Header, 24-pin & 8-pin Power Connectors, M.2 & SATA headers, USB headers, Addressable Gen 2 Headers, Front Panel, COM, Thunderbolt™ (USB4®) header |
| Special Features | ASUS TUF Protection (DIGI+ VRM, ESD Guards, TUF LANGuard, SafeSlot, Overvoltage protection, Stainless steel I/O), ASUS Q-Design (Q-Latch, Q-Release, Q-Antenna, Q-DIMM, Q-LED), ASUS Thermal Solution (M.2 & VRM heatsinks), ASUS EZ DIY (BIOS FlashBack™, ProCool, Pre-mounted I/O Shield), Aura Sync |

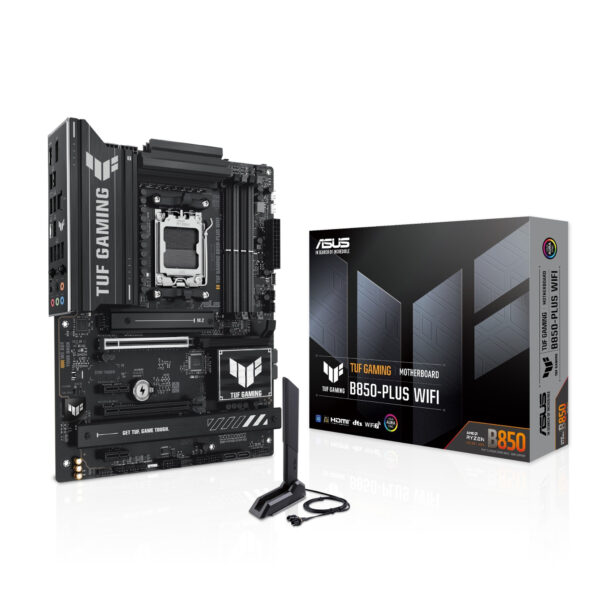

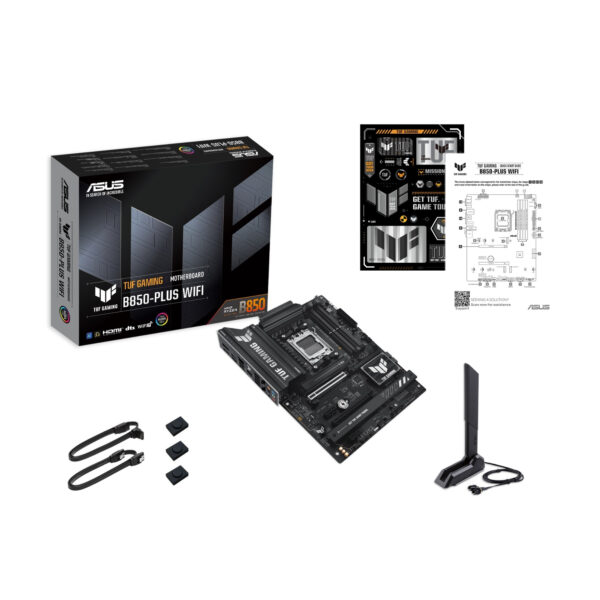

| Package Content | 2 × SATA cables, ASUS Wi-Fi Q-Antenna, TUF Gaming Sticker, 2 × M.2 rubber packages, Quick Start Guide |
| Product Size | 12 × 9.6 inch (30.5 × 24.4 cm) |
| Product Weight | 1.82 lbs |
| Warranty | 1 Year (As per Manufacturer Policy) |
