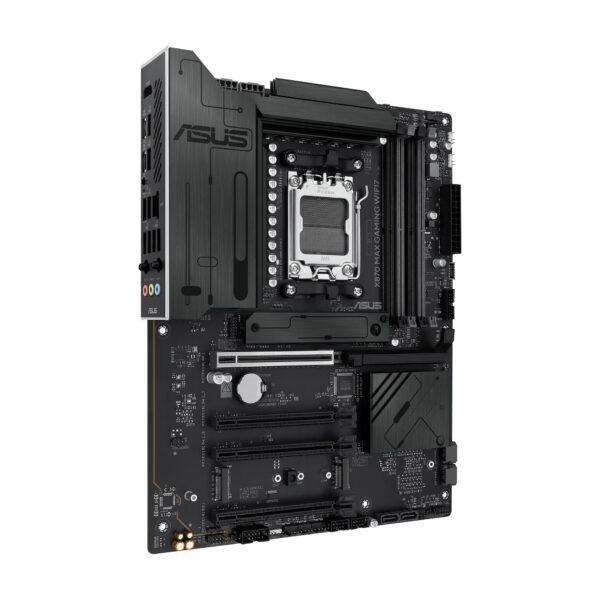

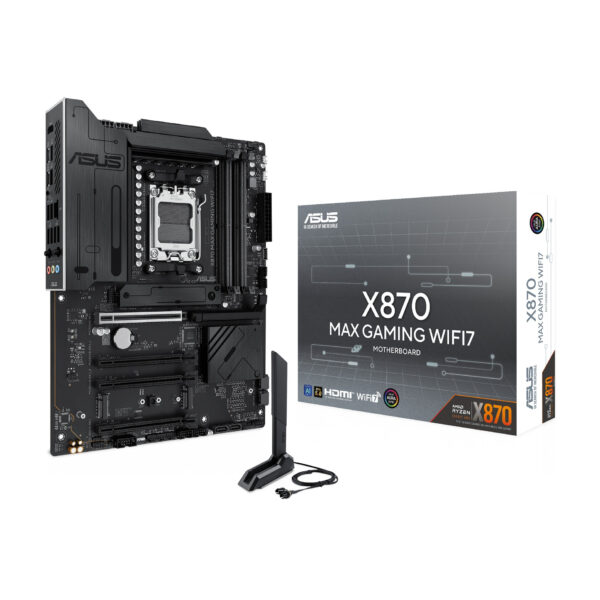

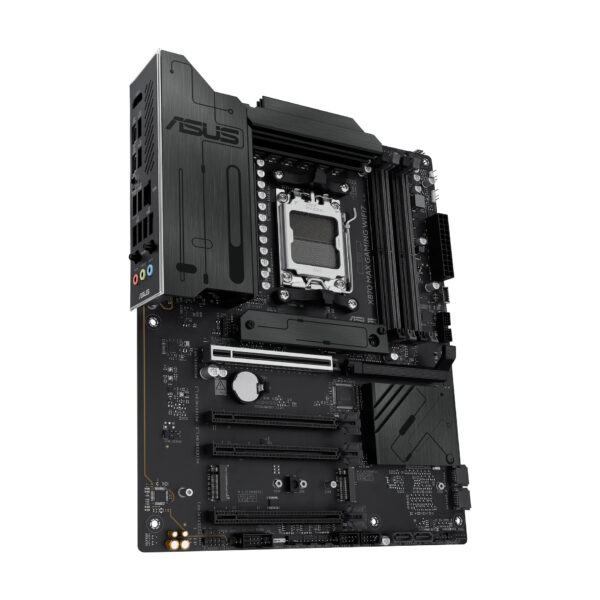

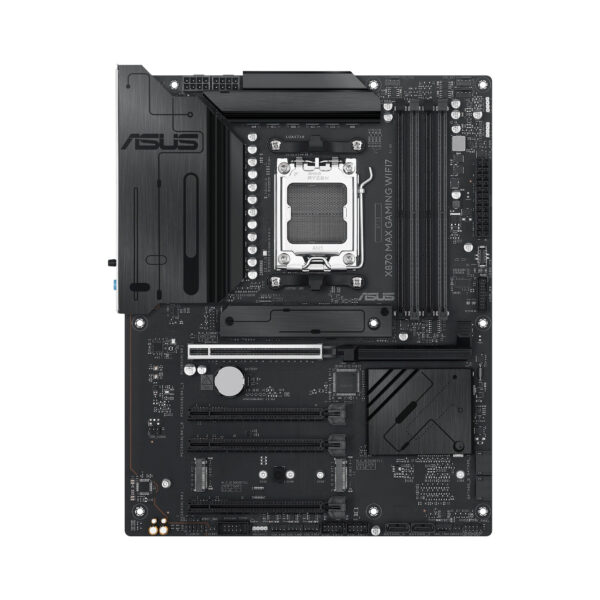

Asus X870 Max Gaming WiFi7 AMD Ryzen PCIe 5.0 Motherboard:
| CATEGORY | SPECIFICATION |
|---|---|
| Model No | Asus X870 Max Gaming WiFi7 AMD Ryzen PCIe 5.0 Ready Gaming Motherboard – Black |
| Part No | 90MB1LY0-M0EAY0 |
| Chipset | AMD X870 Chipset |
| Form Factor | ATX Form Factor (12″ x 9.6″) |
| Socket Compatibility | AMD Socket AM5 for Ryzen 9000 / 8000 / 7000 Series |
| LAN | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2×2 802.11be, 2.4/5/6GHz, up to 2.9Gbps), Bluetooth v5.4 |
| Graphics | 1 x HDMI 2.1, 2 x USB4 (40Gbps, Type-C) |
| Memory | 4 x DIMM slots, max 256GB DDR5, 8000+ MT/s (OC), EXPO & AEMP supported |
| Storage Compatibility | 3 x M.2 slots, 4 x SATA 6Gb/s, AMD RAIDXpert2 (RAID 0/1/5/10) |

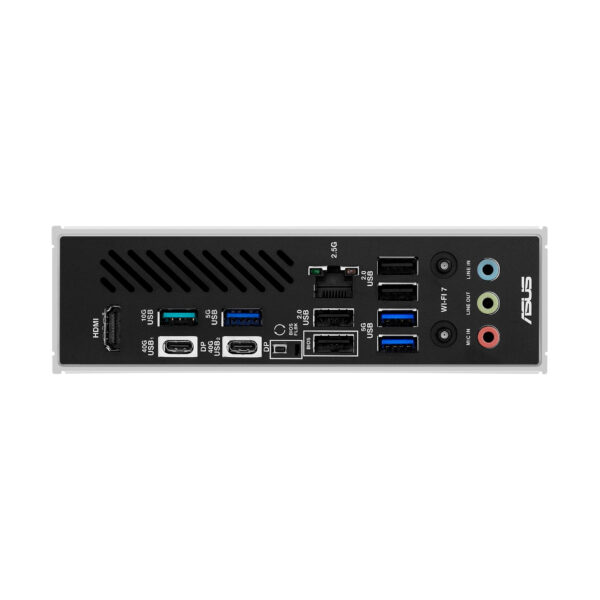

| Back Panel I/O Ports | 2 x USB4 (Type-C), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps, 4 x USB 2.0, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, BIOS FlashBack button |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x16 (Ryzen 8000), 2 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (X870 Chipset) |
| Audio | Realtek 7.1 HD Audio CODEC, Audio Shielding, Premium Capacitors, Dedicated PCB Layers |
| Internal I/O Connectors | CPU/Chassis Fan headers, Power connectors, M.2 slots, USB headers, Addressable RGB, Clear CMOS, Front Panel headers |
| RAID Support | AMD RAIDXpert2: RAID 0/1/5/10 (depending on CPU series) |
| Special Features | ASUS 5X Protection III, DIGI+ VRM, LANGuard, SafeSlot, Q-Design, VRM heatsinks, BIOS FlashBack™, Aura Sync RGB |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Accessories | 2 x SATA cables, Wi-Fi Q-Antenna, M.2 rubber package, M.2 screw package, Quick start guide |
| Product Size | 12″ x 9.6″ (30.5 x 24.4 cm) |
| Warranty | 1 Year (As per Manufacturer Policy) |
