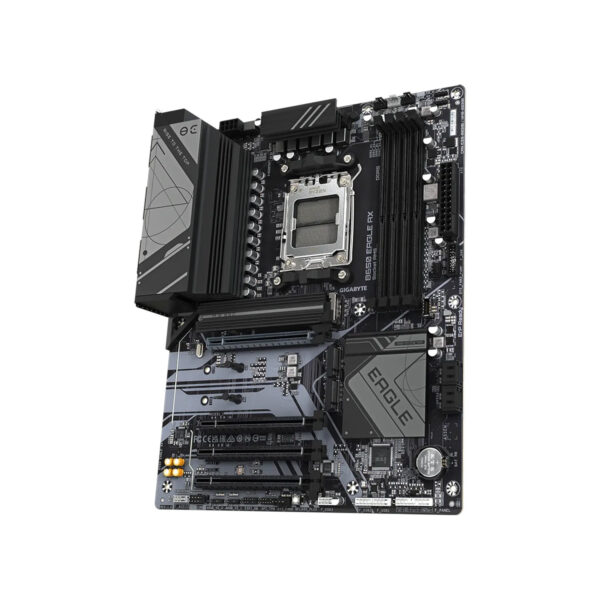

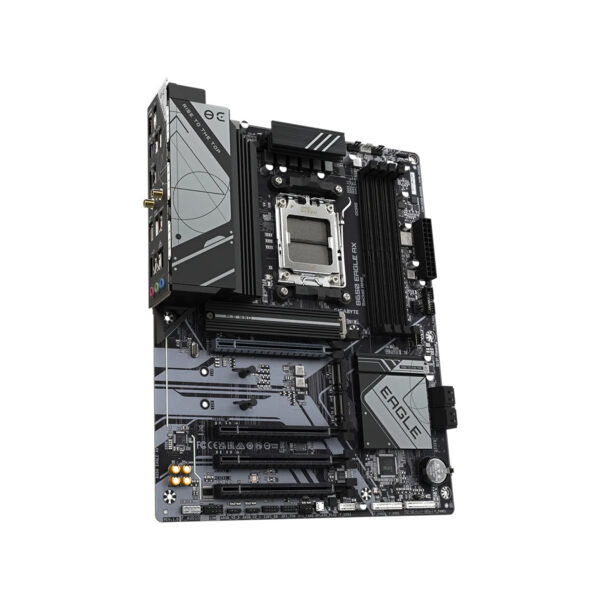

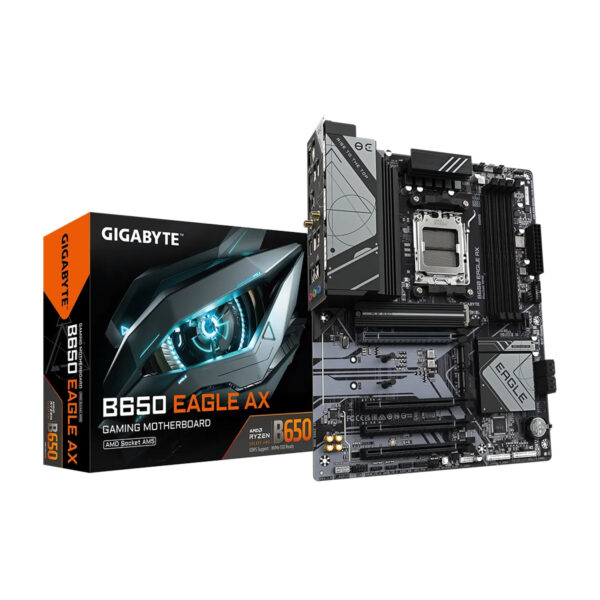

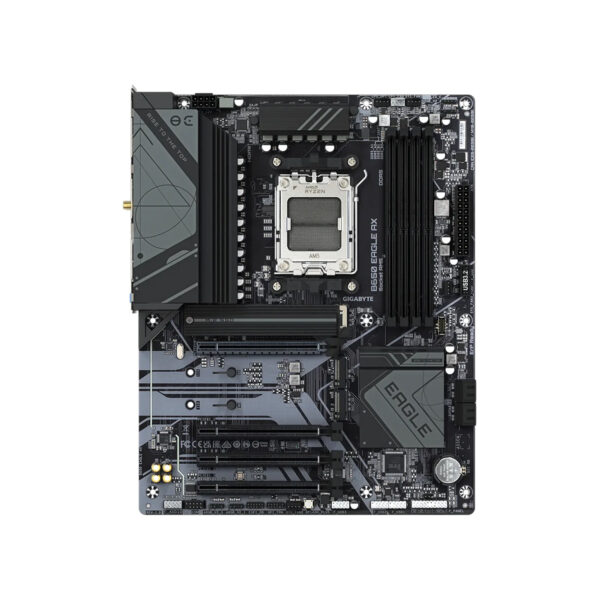

GIGABYTE B650 Eagle AX Motherboard Specification
| CATEGORY | ⚙️ SPECIFICATION |
|---|---|
| Model No | GIGABYTE B650 Eagle AX AMD Ryzen Socket ATX DDR5 Gaming Motherboard |
| Part No | B650 EAGLE AX |
| Chipset | AMD B650 |
| Form Factor | ATX (30.5 × 24.4 cm) |
| CPU Socket | AMD AM5 |
| Processor Support | AMD Ryzen™ 7000 / 8000 / 9000 Series |
| Memory Support | 4× DDR5 DIMM, up to 256GB |
| Memory Speed | DDR5 8000(OC) down to 4800 MT/s |
| Memory Features | Dual Channel, AMD EXPO™, XMP, Non-ECC |
| Integrated Graphics | AMD Radeon™ Graphics (CPU dependent) |
| Display Outputs | 1× DisplayPort 1.4 (4K@144Hz), 1× HDMI 2.1 (4K@60Hz) |
| LAN | Realtek® GbE LAN (1Gbps) |
| Wireless | Wi-Fi 6E + Bluetooth 5.3 |
| Audio | Realtek® HD Audio, 7.1 Channel |
💾 Storage & Expansion
| 🧩 ITEM | 🖱️ DETAILS |
|---|---|
| M.2 Slots | 3× M.2 (PCIe 5.0 / 4.0 support CPU & Chipset) |
| SATA Ports | 4× SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 10 (NVMe & SATA) |
| PCIe Slot (Primary) | 1× PCIe 4.0 x16 |
| Additional Slots | 3× PCIe 3.0 x1 |
| GPU Support | Full-length PCIe x16 graphics cards |
🔌 Connectivity, I/O & Features
| 🛠️ CATEGORY | 📋 DETAILS |
|---|---|

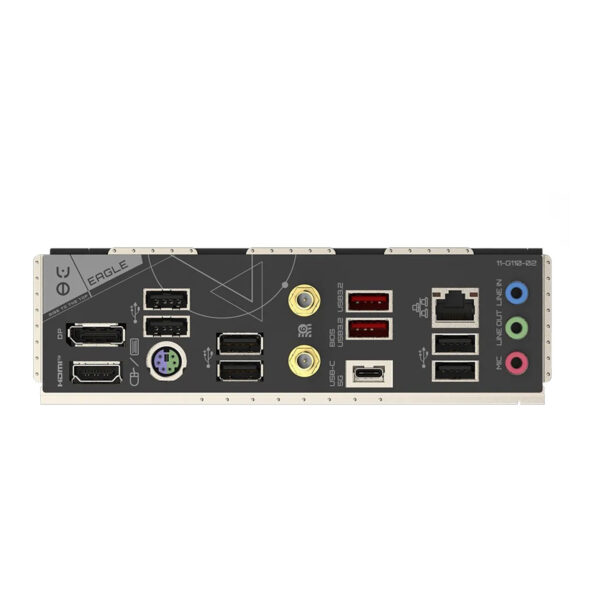

| Rear I/O | HDMI, DisplayPort, USB-C, USB 3.2 Gen2, USB 2.0, RJ-45, Audio Jacks |
| USB Support | USB 3.2 Gen2 / Gen1 / USB 2.0 (rear & headers) |
| Internal Headers | USB-C, USB 3.2, RGB Gen2, ARGB, Fan & Pump Headers |
| Cooling Support | CPU fan, water pump, system fan headers |
| RGB Support | RGB + Addressable RGB Gen2 |
| BIOS | AMI UEFI BIOS (256Mb) |
| Special Features | Q-Flash, Q-Flash Plus, GIGABYTE Control Center |
| Security | TPM Header Support |
| Warranty | 1 Year (As per Manufacturer Policy) |
