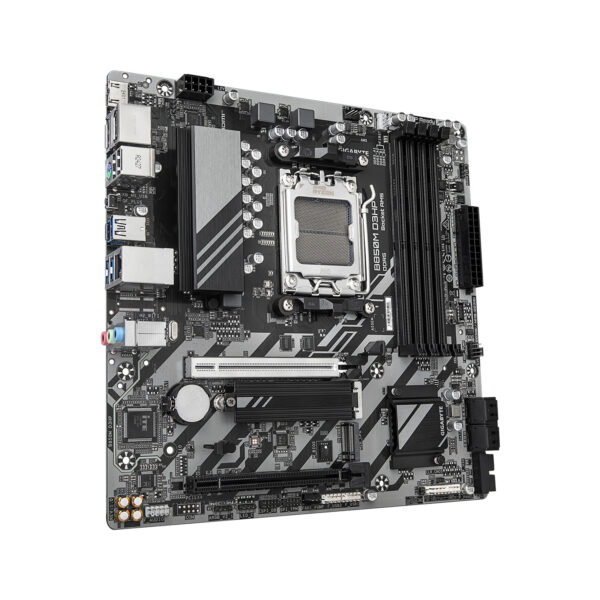

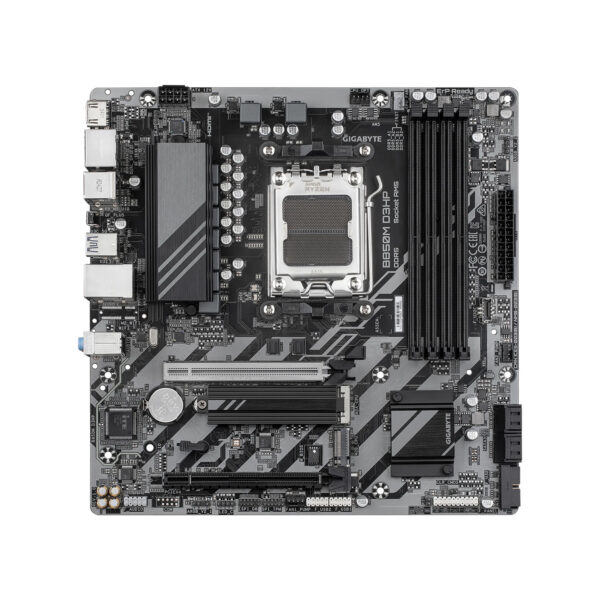

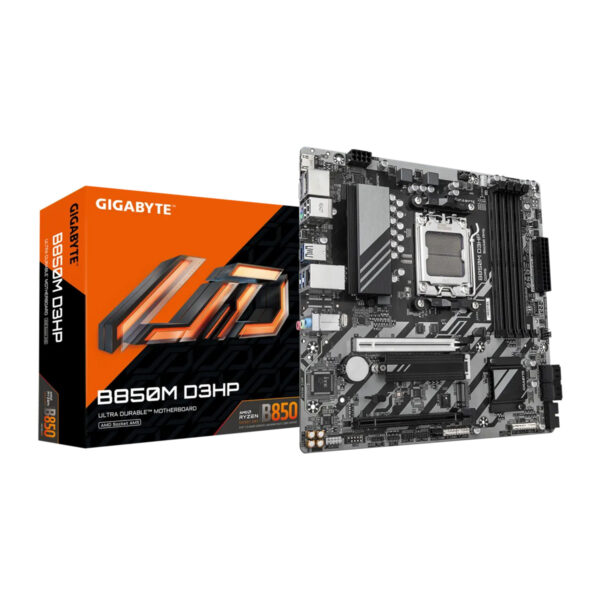

GIGABYTE B850M D3HP Motherboard Specification
| CATEGORY | ⚙️ SPECIFICATION |
|---|---|
| Model No | GIGABYTE B850M D3HP AMD Ryzen DDR5 Gaming Motherboard |
| Part No | B850M D3HP |
| Chipset | AMD B850 |
| Form Factor | Micro-ATX (24.4 × 24.4 cm) |
| CPU Socket | AMD AM5 |
| Processor Support | AMD Ryzen™ 7000 / 8000 / 9000 Series |
| LAN | Realtek® GbE LAN (1 Gbps) |
| Integrated Graphics | AMD Radeon™ Graphics (CPU dependent) |
| Display Outputs | 1× HDMI 2.1 (4K@60Hz), 2× DisplayPort 1.4 (4K@144Hz) |
| Multi-Display Support | Up to Triple Display |
| Audio | Realtek® HD Audio, 7.1-Channel |
💾 Memory, Storage & Expansion
| 🧩 ITEM | 🖱️ DETAILS |
|---|---|
| Memory Support | 4× DDR5 DIMM, up to 256GB |
| Memory Speed | DDR5 up to 8200 MT/s (OC) |
| Memory Features | Dual Channel, AMD EXPO™, XMP, Non-ECC |
| M.2 Slots | 2× M.2 (PCIe 5.0 & PCIe 4.0 support) |
| SATA Ports | 4× SATA 6Gb/s |
| RAID Support (NVMe) | RAID 0 / 1 / 5* / 10 (*Ryzen 9000 only) |
| RAID Support (SATA) | RAID 0 / 1 / 10 |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 3.0 x4 |
🔌 Connectivity, I/O & Features
| 🛠️ CATEGORY | 📋 DETAILS |
|---|---|

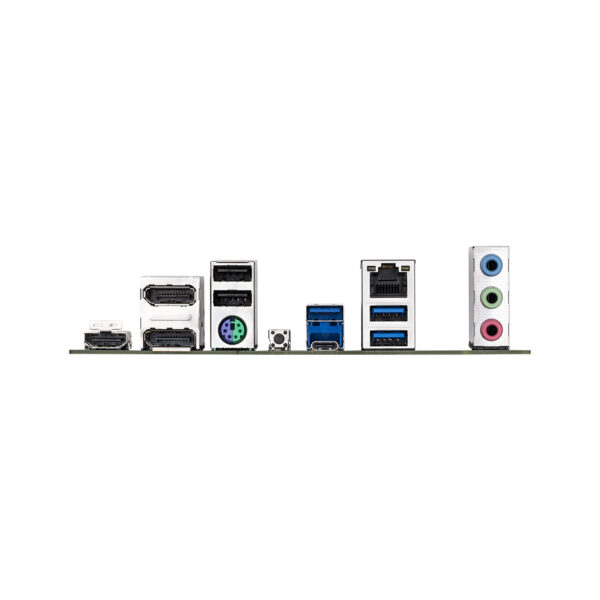

| Rear I/O Ports | HDMI, 2× DisplayPort, USB-C, USB 3.2 Gen1, USB 2.0, RJ-45, Audio Jacks, PS/2 |
| USB Support | USB-C & USB 3.2 Gen1 (rear & headers) |
| Cooling Headers | CPU Fan, CPU Pump, System Fan, Pump Header |
| RGB Support | RGB Header + Addressable RGB Gen2 Headers |
| Internal Headers | USB-C, USB 3.2, USB 2.0, SATA, Front Panel, TPM |
| Special Features | Q-Flash, Q-Flash Plus, Smart Backup, GIGABYTE Control Center |
| BIOS | AMI UEFI BIOS (256 Mbit) |
| Hardware Monitoring | Voltage, Temp, Fan Speed, Pump Flow, Fan Fail Alert |
| Warranty | 1 Year (As per Manufacturer Policy) |
