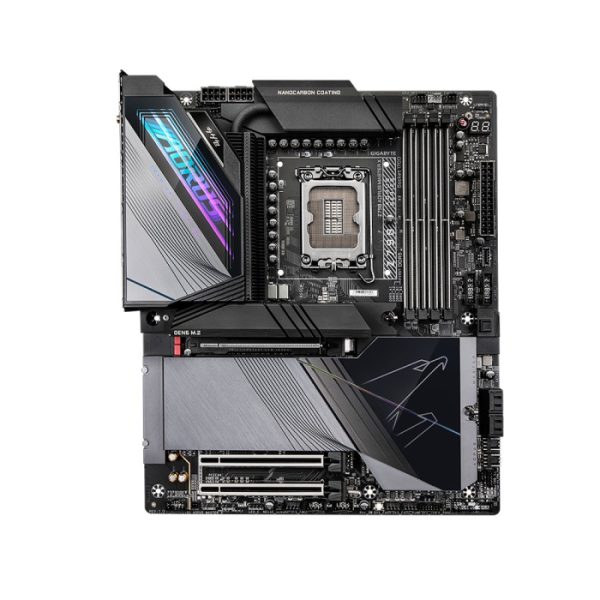

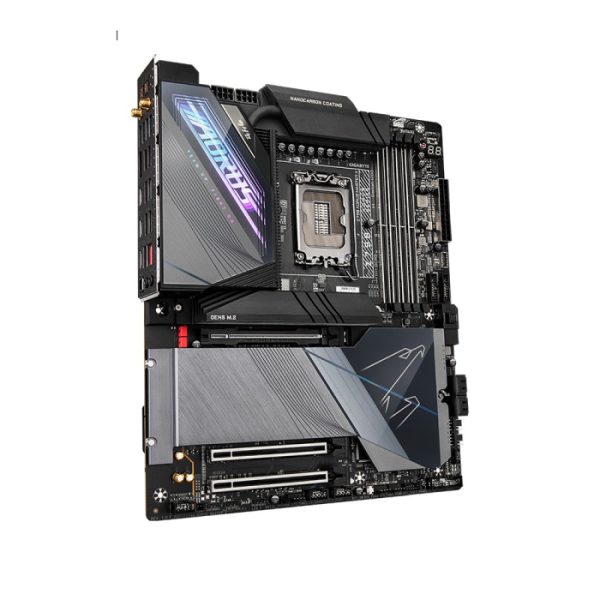

GigaByte Z790 AORUS MASTER X Gaming MotherBoard SPECIFICATION:
| CATEGORY | SPECIFICATION |
|---|---|
| Model No | GigaByte Intel Z790 AORUS MASTER X DDR5 Wifi Gaming MotherBoard |
| Part No | Z790 AORUS MASTER X |
| Chipset | Intel® Z790 Express Chipset |
| Form Factor | E-ATX (30.5cm x 26.0cm) |
| Socket Compatibility | LGA1700; Supports 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, Celeron® processors |
| LAN | Marvell® AQtion AQC113C 10GbE LAN (10/5/2.5/1/0.1 Gbps) |
| Wireless & Bluetooth | Qualcomm® Wi-Fi 7 QCNCM865, MediaTek Wi-Fi 7 MT7927, Intel® Wi-Fi 7 BE200; Bluetooth 5.3; Wi-Fi 7 supports 2.4/5/6 GHz bands |
| Graphics | Integrated Intel® HD Graphics; 1 x DisplayPort (4096×2304@60Hz) |
| Memory | 4 x DDR5 DIMM up to 192GB; Supports DDR5 4800–8266 MT/s (O.C); Dual channel; ECC & non-ECC support; XMP support |
| Storage Compatibility | CPU: 2 x M.2 (PCIe 5.0 & 4.0), Chipset: 3 x M.2 (PCIe 4.0/SATA); 4 x SATA 6Gb/s; RAID 0/1/5/10 support |

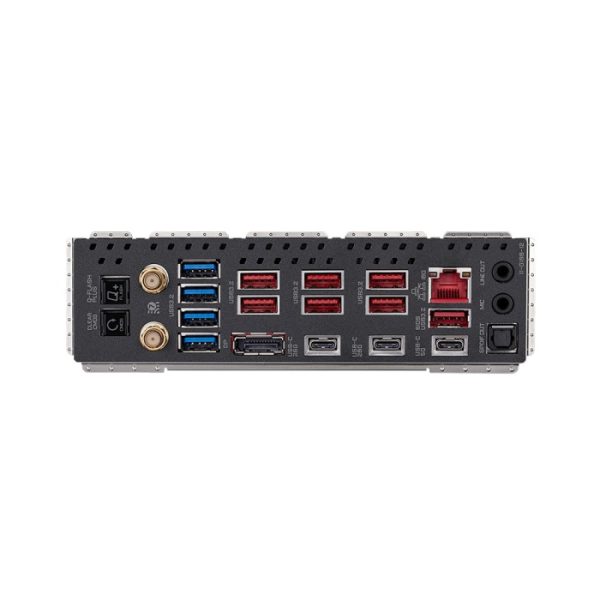

| Back Panel I/O Ports | Q-Flash Plus, Clear CMOS, 2 x SMA antenna, DisplayPort, 3 x USB Type-C, 7 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, RJ-45, optical S/PDIF, 2 x audio jacks |
| USB Ports | Total 16+ USB ports including USB 3.2 Gen2x2, Gen2, Gen1, USB 2.0; internal headers included |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 (Chipset) |
| Audio | Realtek® ALC1220-VB CODEC, ESS ES9118 DAC, DTS:X® Ultra, 2/4/5.1-channel, S/PDIF Out |
| Internal I/O Connectors | 24-pin ATX, 2 x 8-pin CPU, 5 x M.2, 4 x SATA, fan headers, RGB/ARGB headers, USB headers, Thunderbolt™, TMP, power/reset buttons, voltage/temp sensors, noise detection |
| Special Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow, Fan fail warning, Noise detection, Fan/pump control |
| BIOS | 256 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty | 1 Year (As per Manufacturer Policy) |
