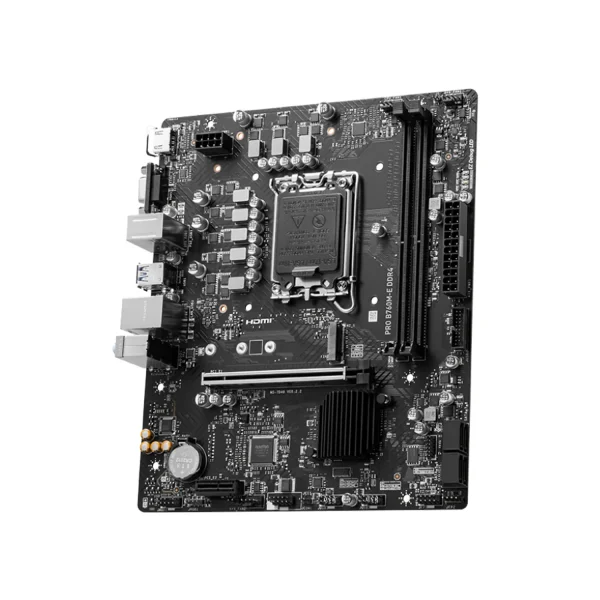

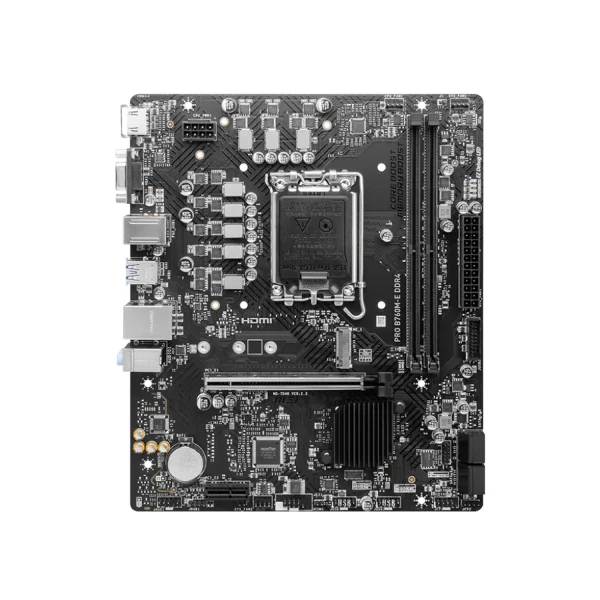

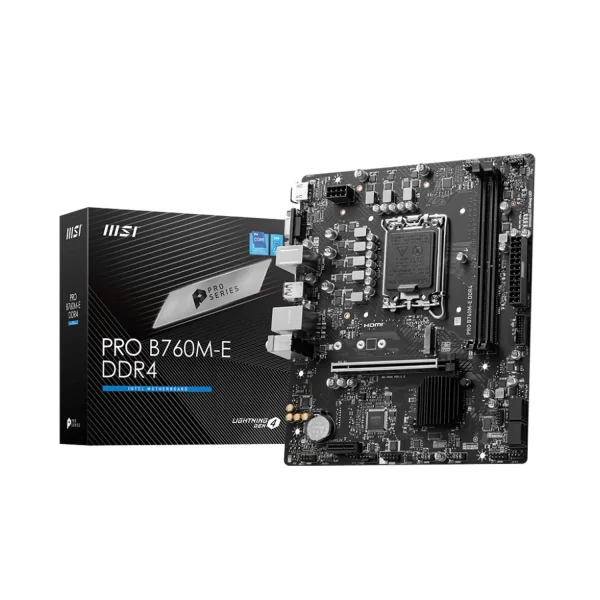

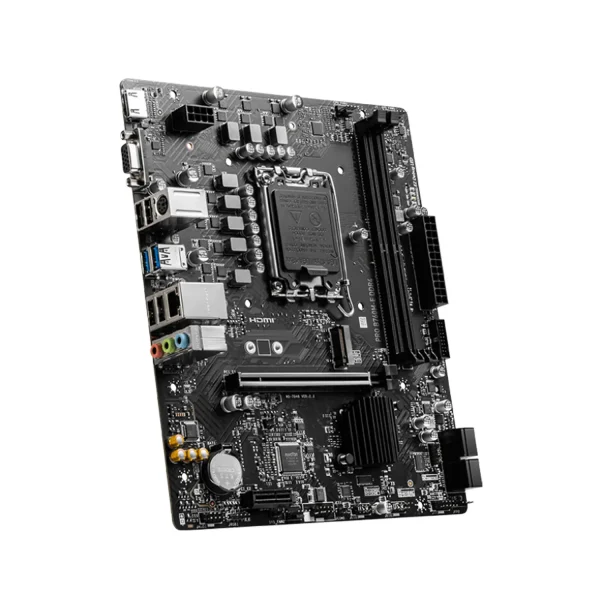

MSI PRO B760M-E DDR4 Intel Micro-ATX Motherboard:
| Category | Specification |
|---|---|
| Model No | MSI Intel Pro B760M-E DDR4 Motherboard |
| Part No | 911-7D48-061 |
| Chipset | Intel B760 |
| Form Factor | mATX (200 × 236.16 mm) |
| Socket Compatibility | LGA 1700 – Supports 12th/13th Gen Intel® Core™, Pentium® Gold & Celeron® |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Graphics | 1× HDMI (4K @30Hz), 1× VGA |
| Memory | 2× DDR4 Slots, Up to 64GB, 4800MHz (OC) |
| Memory Features | Dual Channel, XMP Support, Non-ECC Unbuffered |
| Storage Compatibility | 1× M.2 (PCIe 4.0 x4 / SATA), 4× SATA 6G |
| Expansion Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| Back Panel I/O Ports | HDMI, VGA, USB 3.2 Gen1, USB 2.0, LAN, Audio, Keyboard/Mouse |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Internal I/O Connectors | ATX Power, CPU Power, CPU Fan, System Fans, USB Headers, RGB, TPM |
| USB Ports | USB 2.0 (Rear + Front), USB 3.2 Gen1 Type-A (Rear + Front) |
| LED Features | 4× EZ Debug LED |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| Special Features | Core Boost, Memory Boost, PCIe 4.0, M.2 Gen4, Audio Boost, Steel Armor |
| Warranty | 1 Year (As per Manufacturer Policy) |
