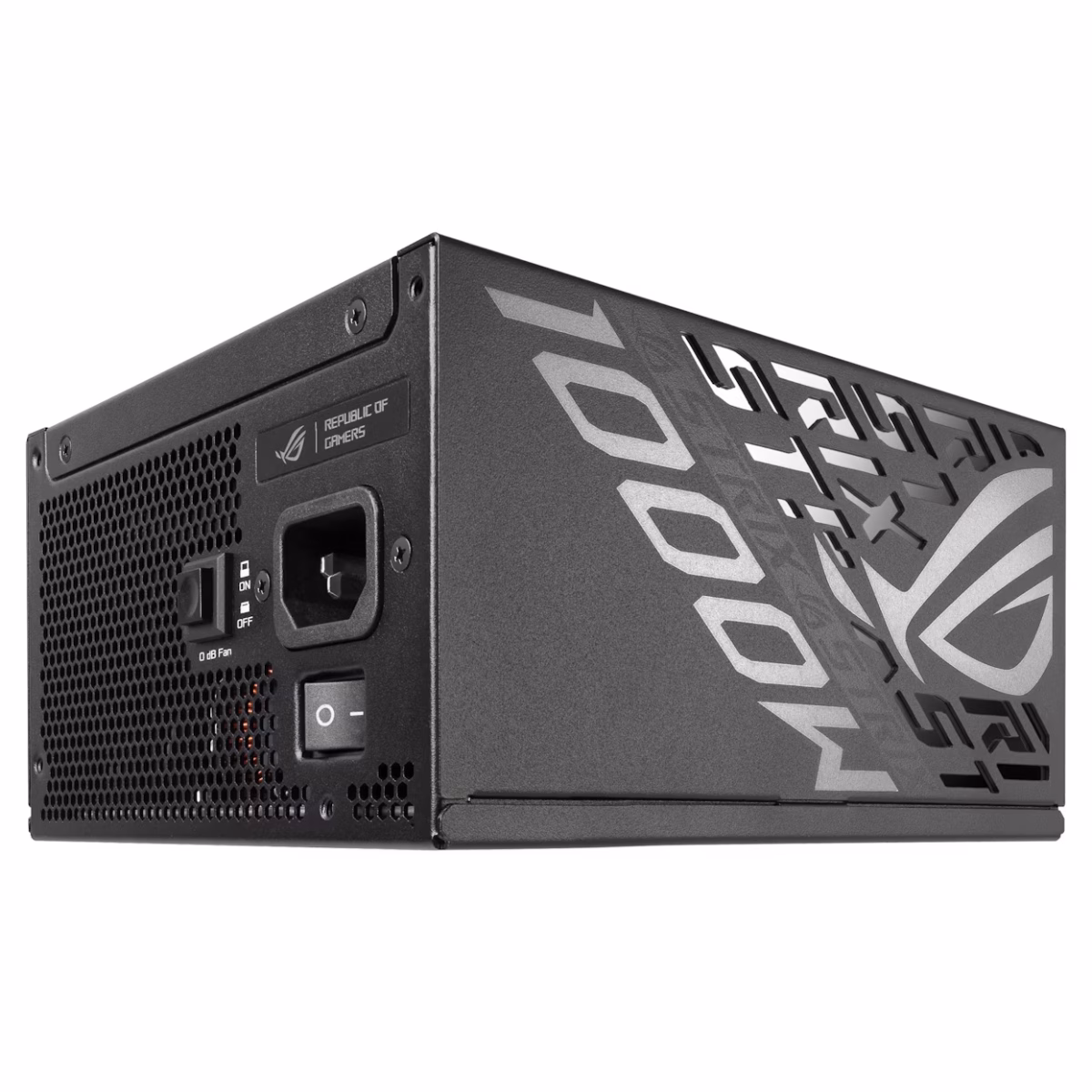

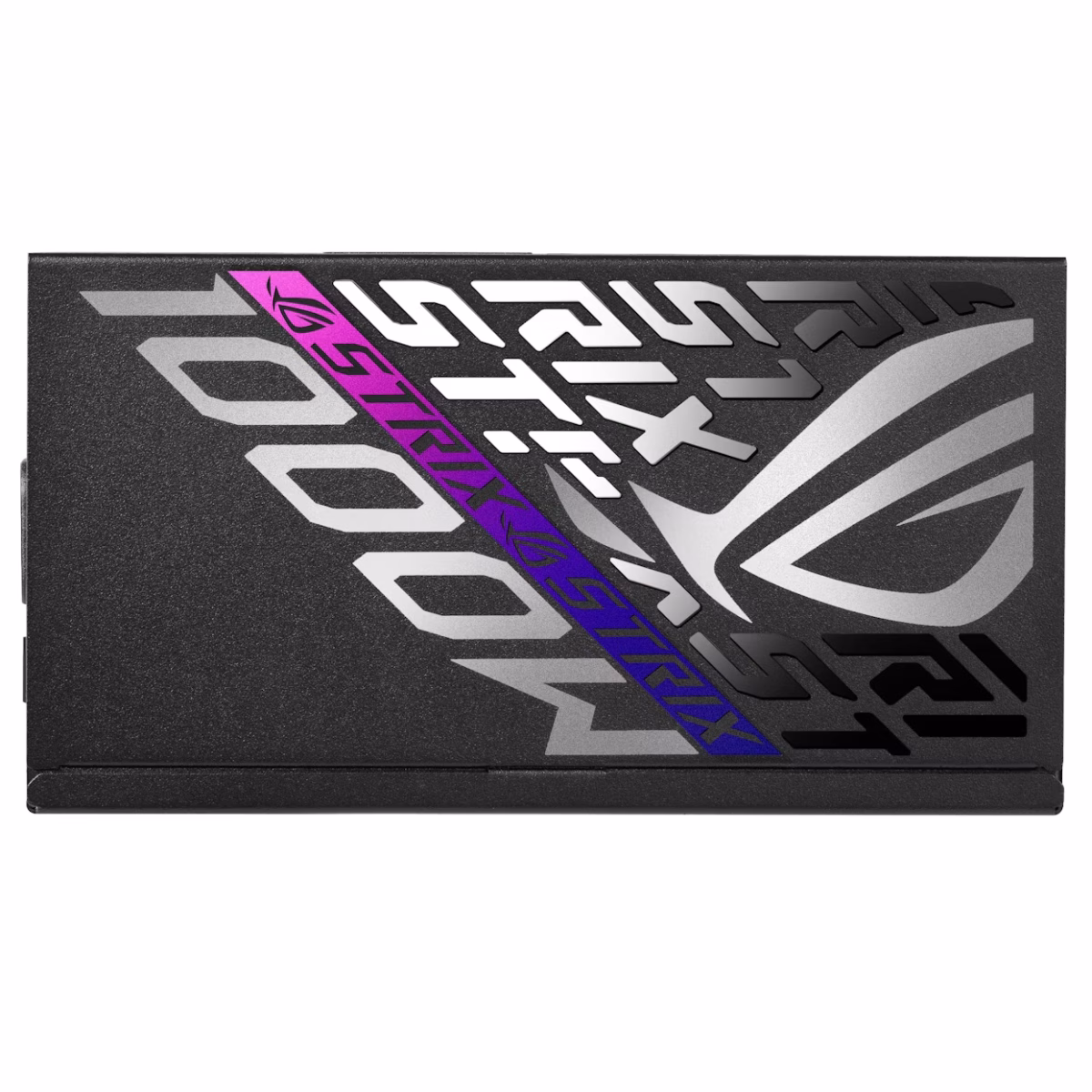

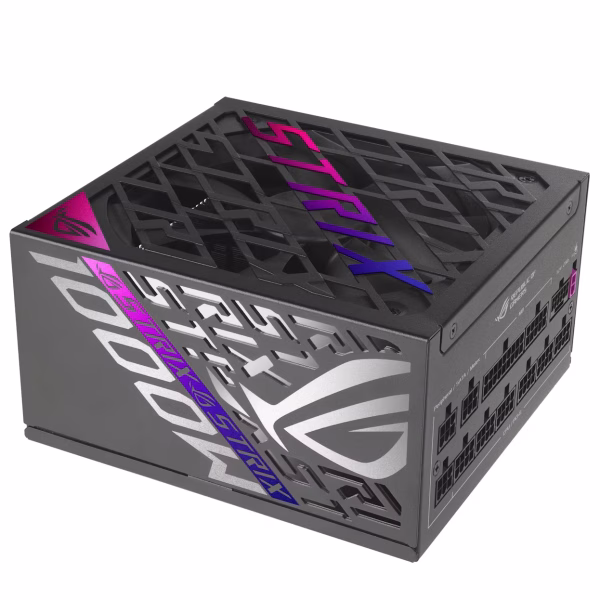

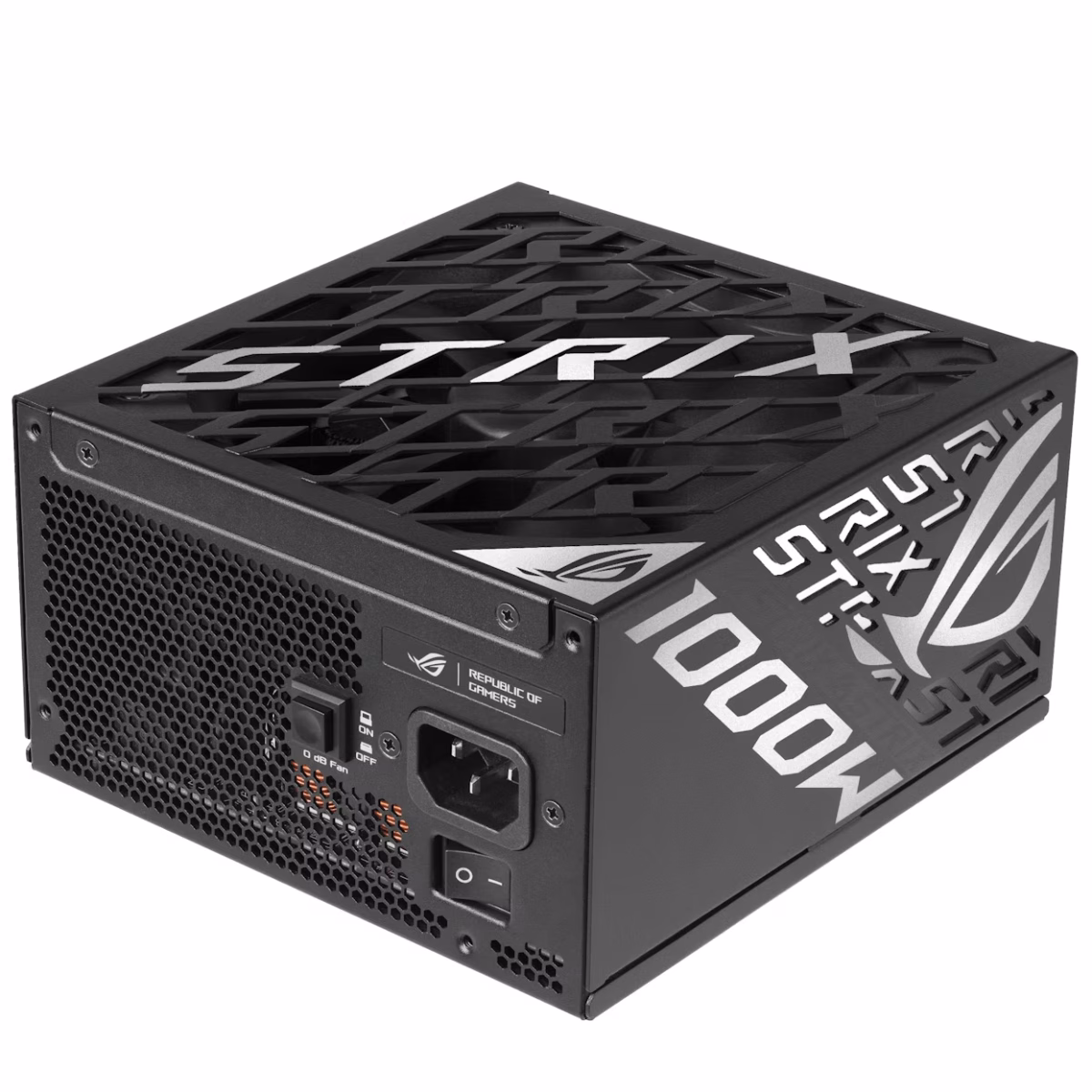

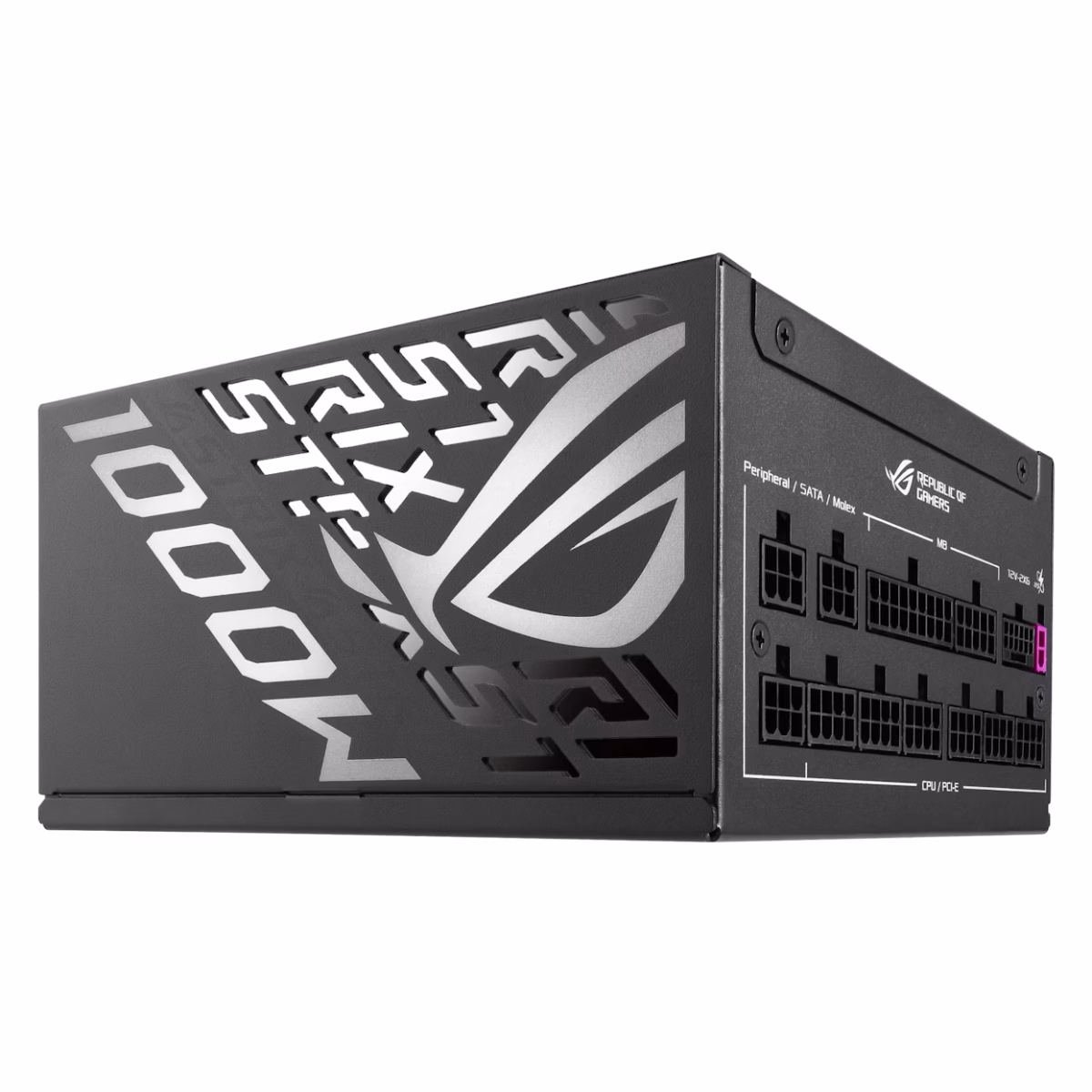

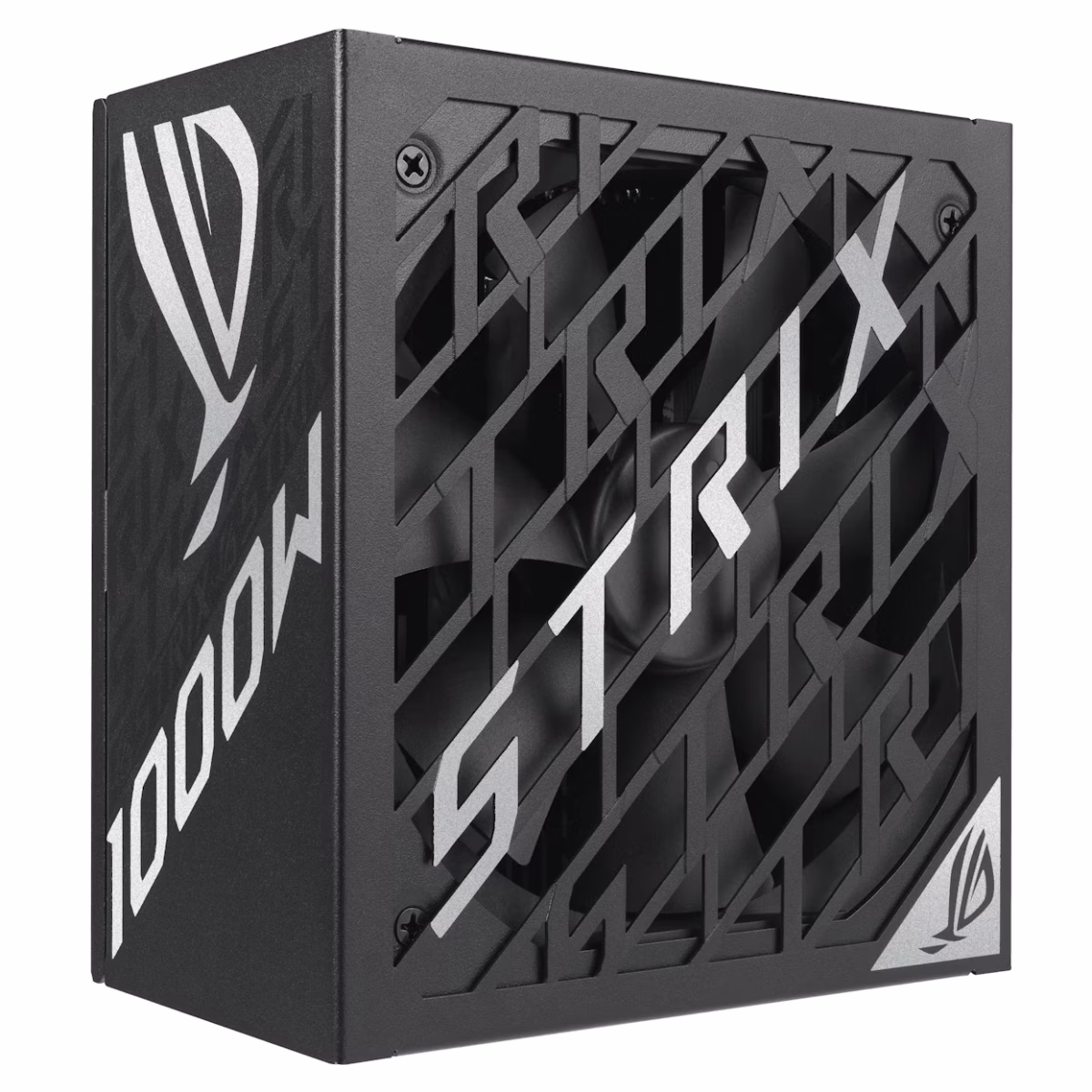

ROG STRIX 1000W PLATINUM power supply:
| Category | Details |
|---|---|
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 160 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | +3.3V: 25A, +5V: 25A, +12V: 83.3A, -12V: 0.3A, +5Vsb: 3A |
| Combined Load | +3.3V & +5V: 130W, +12V: 1000W, -12V: 3.6W, +5Vsb: 15W |
| Total Output | 1000W |

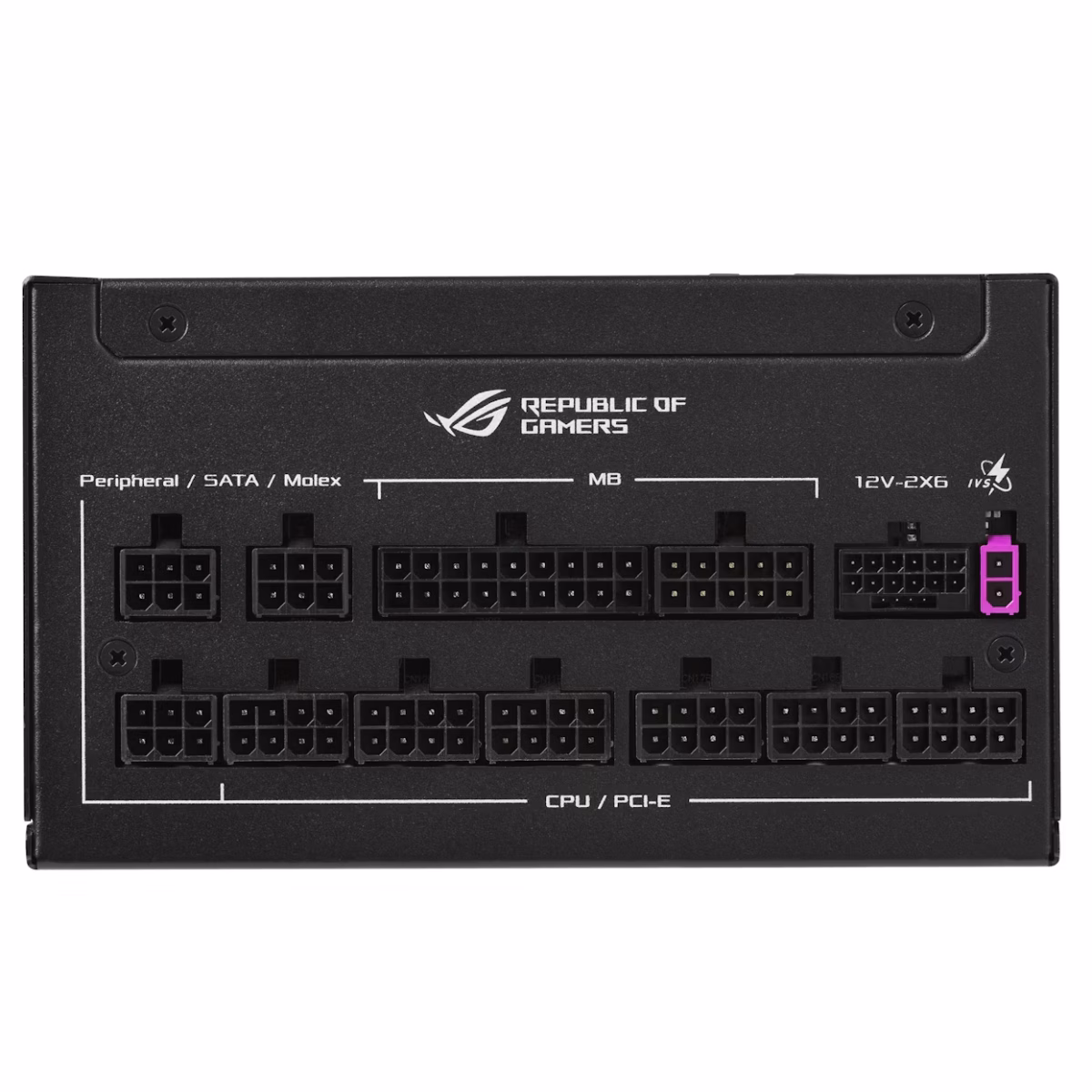

| Cable Connectors | MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 16-pin x 1, PCI-E 6+2-pin x 4, SATA x 6, PERIPHERAL x 3 |

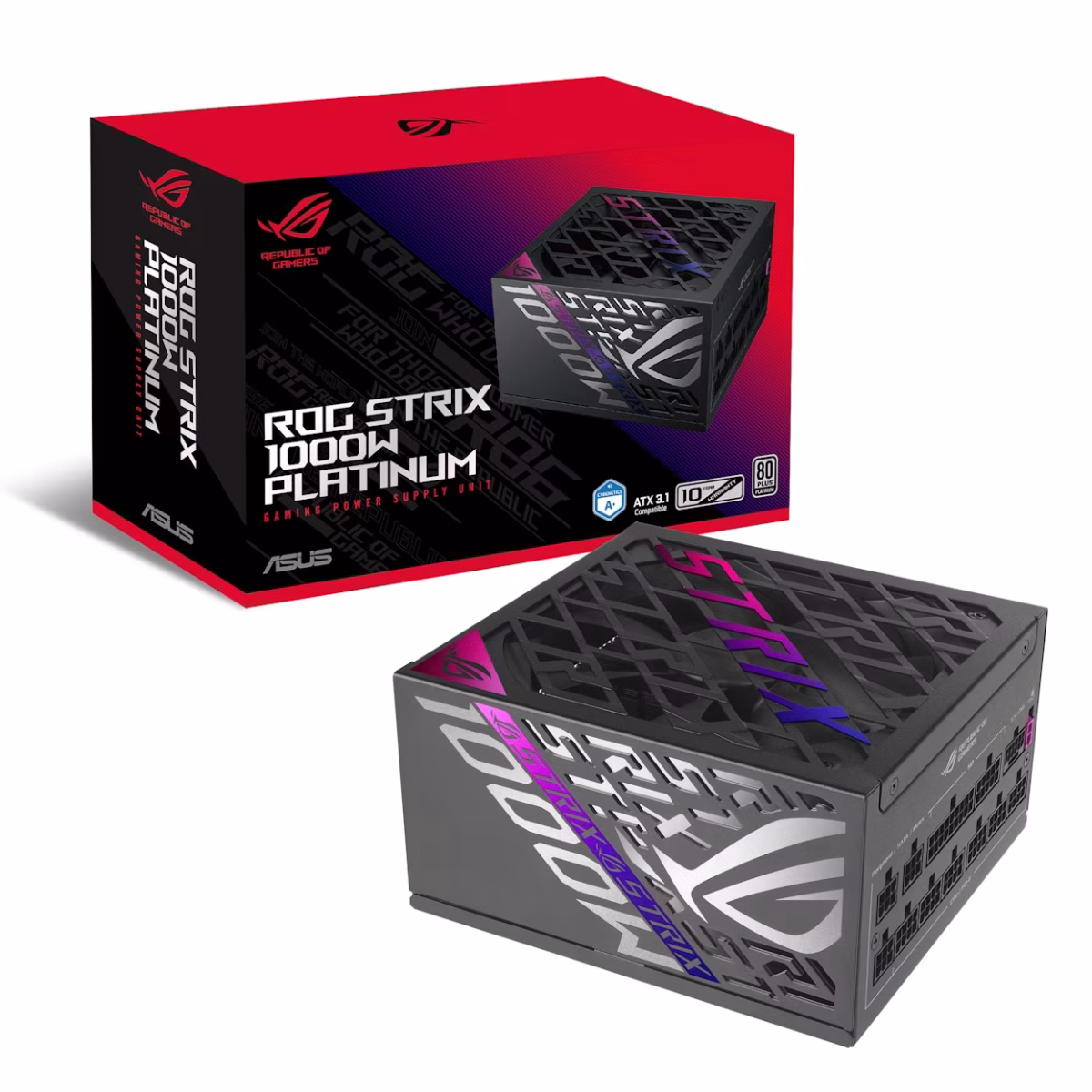

| Package Contents | Full cable set, ROG DIY sticker, User Manual |
| Weight | 2.91 kg |
| Cybenetics Noise Level Certification | A+ |
| 0dB Technology | Supported |

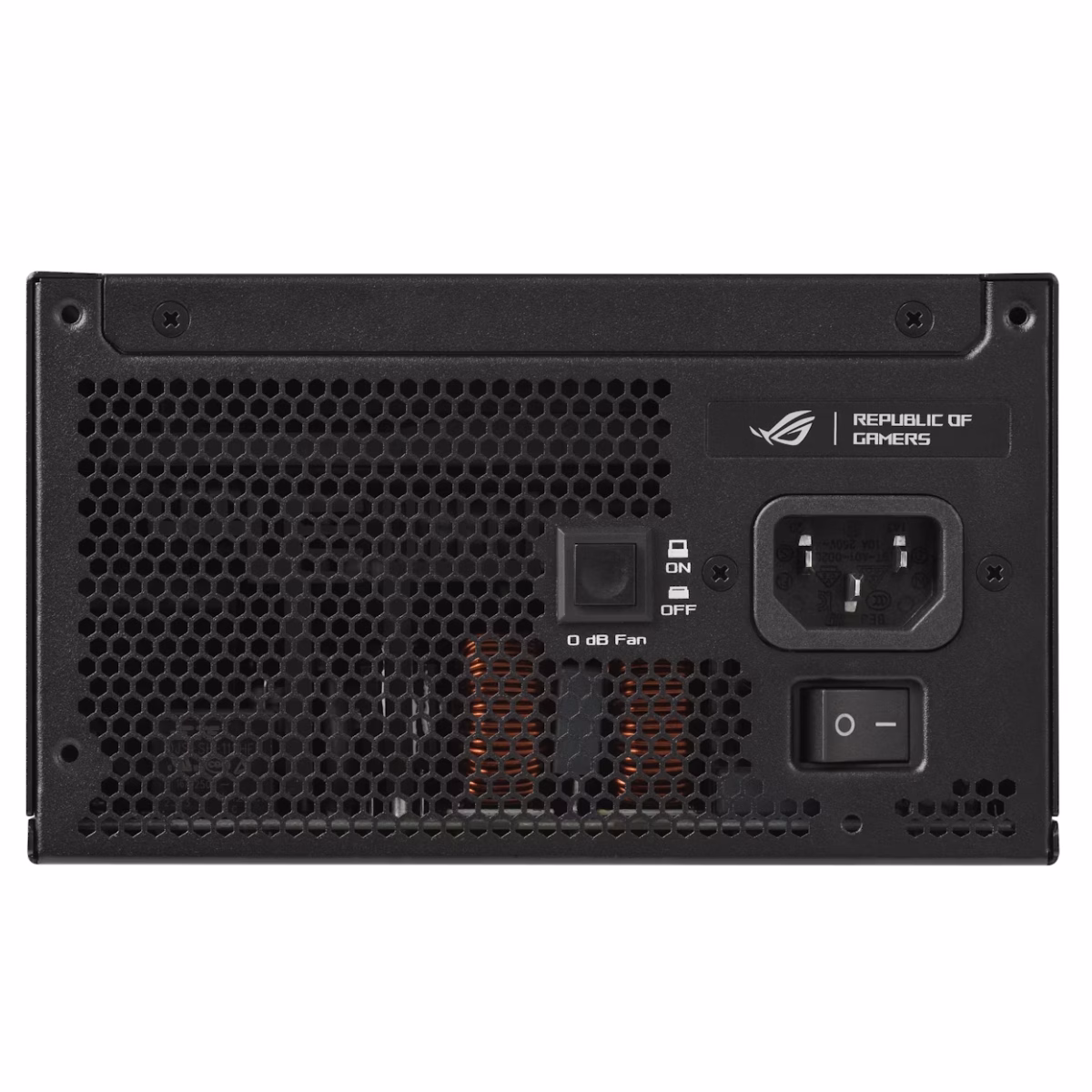

| 0dB Fan Button | Yes |
| Total Power | 1000 W |
| AC Input Voltage | 100 – 240 V |
| Power Factor Correction (PFC) Type | Active |
| Combined Power | 130W (+3.3V & +5V), 1000W (+12V), 3.6W (-12V), 15W (+5Vsb) |
| Max Output Current | 25A (+3.3V/+5V), 83.3A (+12V), 0.3A (-12V), 3A (+5Vsb) |
| Power Protection Features | OCP, OVP, OPP, SCP, UVP, OTP |
| Motherboard Power Connector | 20+4 pin ATX |
| Motherboard Power Cable Length | 61 cm |
| Number of SATA Power Connectors | 6 |
| SATA Power Cable Length | 120,400 mm |
| Peripheral Power Connectors (4-pin) | 3 |
| Peripheral Cable Length | 150,400 mm |
| PCI Express Power Connectors (6+2 pin) | 4 |
| PCI Express Power Connector (16-pin) | 1 |
| PCI Express Power Cable Length | 75 cm |
| CPU Power Connector (4+4 pin) | Yes |
| CPU Power Cable Length | 100 cm |
| ATX Power Connector (20+4 pin) | Yes |
| Cabling Type | Fully-Modular |
| 80 PLUS Certification | Platinum |
| Purpose | PC |
| PSU Form Factor | ATX |
| Noise Level | 20 dB |
| Bearing Technology | Ball bearing |
| MTBF | 120000 h |
| Product Colour | Black, Silver |
| Cooling Type | Semi-passive |

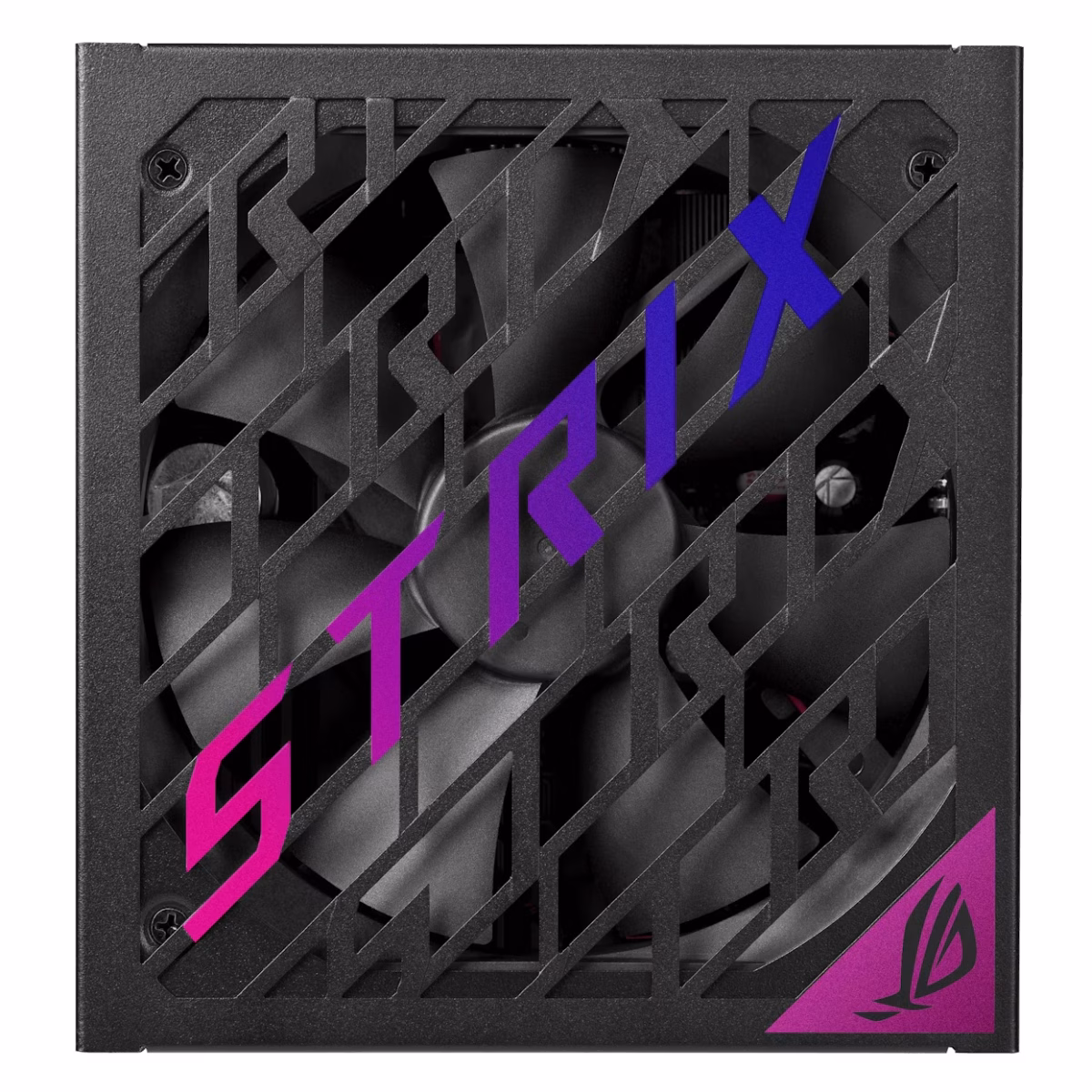

| Number of Fans | 1 |
| Illumination | Yes |
| On/Off Switch | Yes |
| Cables Included | AC, CPU, PCIe, Molex, SATA |
| Certification | Cybenetics A+ |
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.91 kg |
| Package Width | 320 mm |
| Package Depth | 200 mm |
| Package Height | 108 mm |
| Package Weight | 3.62 kg |
| Package Type | Box |
