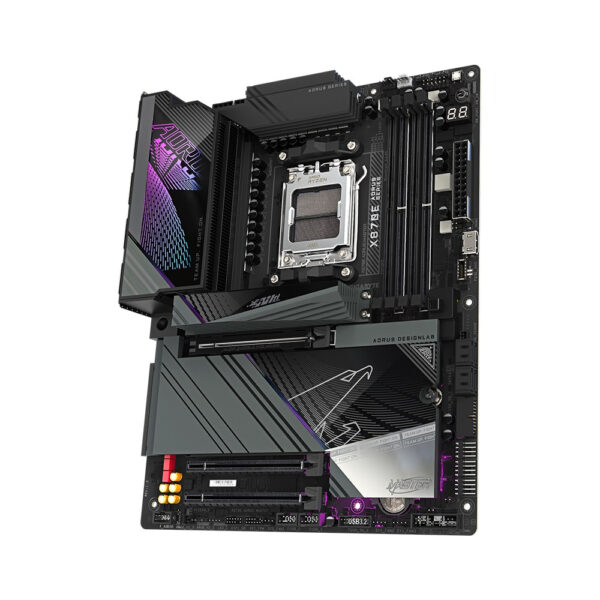

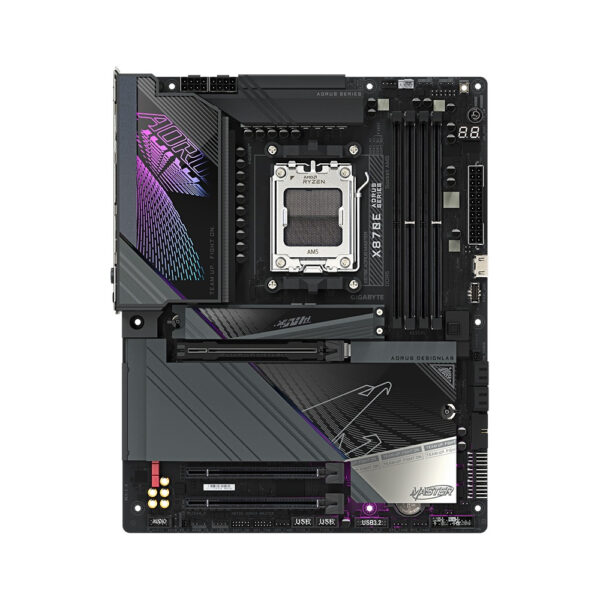

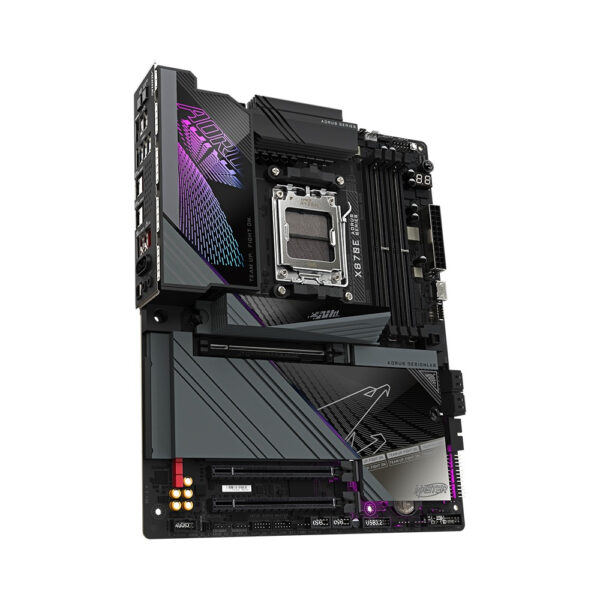

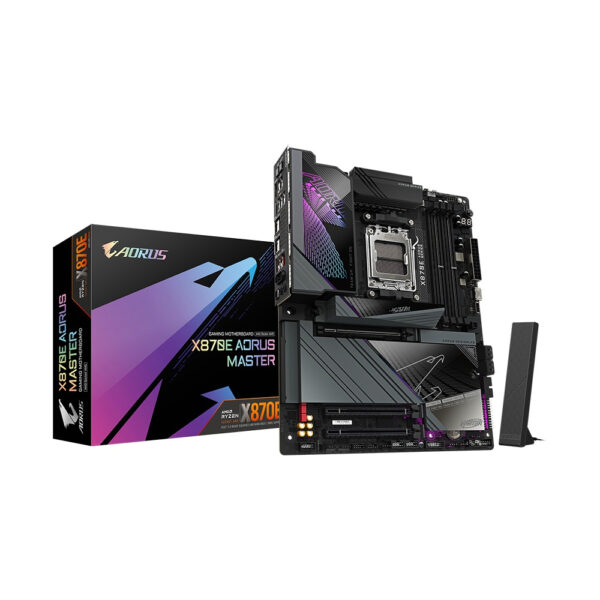

GIGABYTE X870E AORUS MASTER WiFi 7 Gaming Motherboard
Motherboard Specifications
| CATEGORY | SPECIFICATION |
|---|---|
| Model No | GIGABYTE X870E AORUS MASTER WiFi7 AMD Ryzen PCIe 5.0 DDR5 Gaming Motherboard |
| Part No | X870E AORUS MASTER |
| Chipset | AMD X870E |
| Form Factor | ATX Form Factor (30.5 × 24.4 cm) |
| Socket Compatibility | AMD Socket AM5 – Supports Ryzen™ 7000 / 8000 / 9000 Series |
| LAN | Realtek® 5GbE LAN (5 / 2.5 / 1 Gbps) |
| Wireless | Qualcomm® Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), 2.4/5/6 GHz, Bluetooth 5.3 |
| Memory Support | 4 × DDR5 DIMM, up to 256GB, Dual Channel, DDR5 up to 8600(O.C) MT/s, AMD EXPO™ / XMP, ECC & Non-ECC |
| Integrated Graphics | AMD Radeon™ Graphics support (CPU dependent) with USB4® & HDMI outputs |
| Video Outputs | 2 × USB4® Type-C (DP 1.4, up to 4K@240Hz), 1 × HDMI 2.1 (4K@60Hz), 1 × Front HDMI |
| Expansion Slots | 1 × PCIe 5.0 x16 (CPU), 1 × PCIe 4.0 x16 (x4), 1 × PCIe 3.0 x16 (x4) |
| Storage Support | 4 × M.2 (PCIe 5.0 / 4.0), 4 × SATA 6Gb/s, NVMe & SATA RAID 0/1/5/10 |
| USB Ports (Rear & Internal) | Dual USB4®, USB 3.2 Gen2/Gen1, USB-C Gen2x2 (65W header), USB 2.0 |
| Audio | Realtek® ALC1220 CODEC, DTS:X® Ultra, 2/4/5.1/7.1-Channel, Optical S/PDIF |
| Cooling & Power | Dual 8-pin CPU power, multiple fan & pump headers, temperature sensors |
| RGB Support | Addressable RGB Gen2 headers & standard RGB headers |
| Special Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| BIOS | AMI UEFI BIOS, 256 Mbit Flash |
| Operating System | Windows 11 64-bit Support |
| Warranty | 1 Year (As per Manufacturer Policy) |
