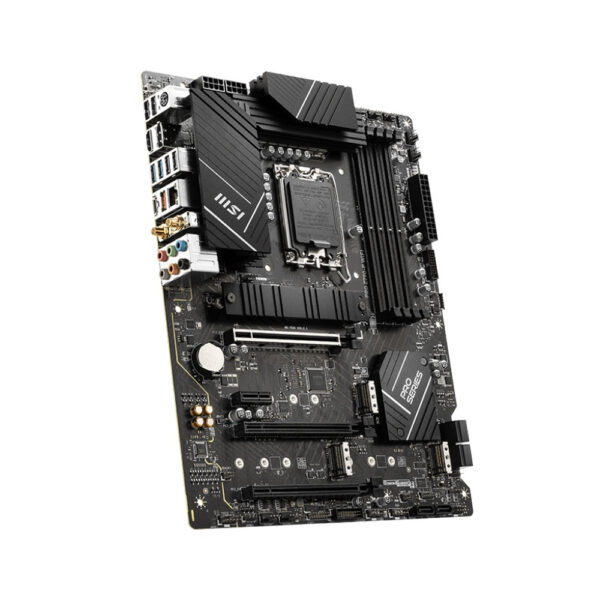

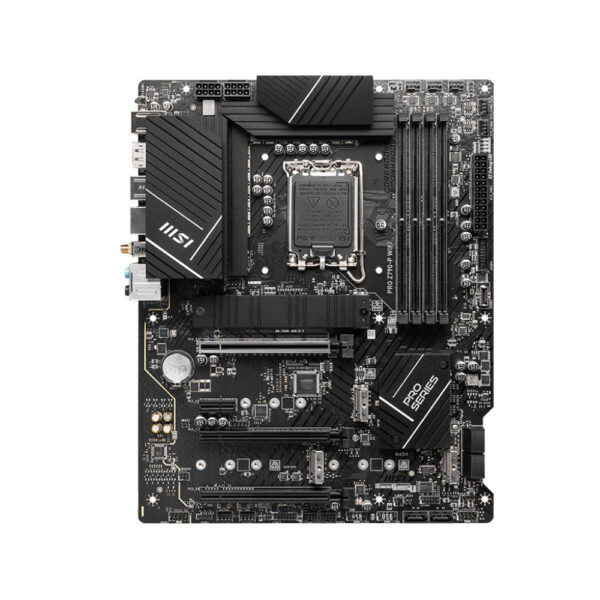

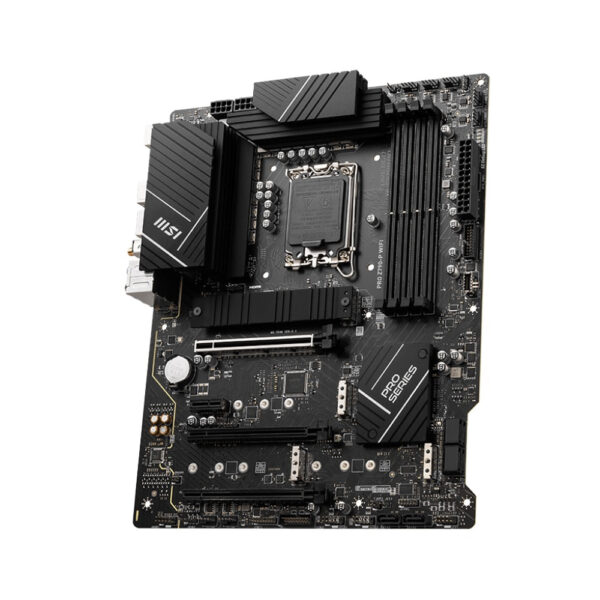

MSI PRO Z790-P Wi-Fi 6E DDR5 Motherboard (LGA 1700) :
| Specification | Details |
|---|---|
| Model No | MSI Intel PRO Z790-P Wi-Fi 6E DDR5 Motherboard LGA 1700 Socket |
| Part No | 911-7E06-091 |
| Chipset | Intel Z790 |
| Form Factor | ATX |
| Socket Compatibility | LGA 1700 – Supports Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, and Celeron® processors |
| Wireless & Bluetooth | Intel® Wi-Fi 6E (MU-MIMO TX/RX, 2.4/5/6 GHz up to 2.4Gbps) Bluetooth® 5.3 (Windows 10 build 21H1 & Windows 11 support) |
| LAN | Intel® 2.5Gbps LAN |
| Memory Support | 4x DDR5 DIMM slots, up to 256GB OC Speeds: 7000+ / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 MHz Dual-Channel, Intel® XMP 3.0, Non-ECC Unbuffered |
| Onboard Graphics | 1x HDMI™ 2.1 (4K @ 60Hz) 1x DisplayPort 1.4 (4K @ 60Hz) |
| Storage | 4x M.2 Slots (PCIe 4.0 / SATA) 6x SATA 6Gb/s Ports |
| Expansion Slots | 3x PCIe x16 (1x Gen 5.0, 1x Gen 4.0, 1x Gen 3.0) 1x PCIe x1 (Gen 3.0) |

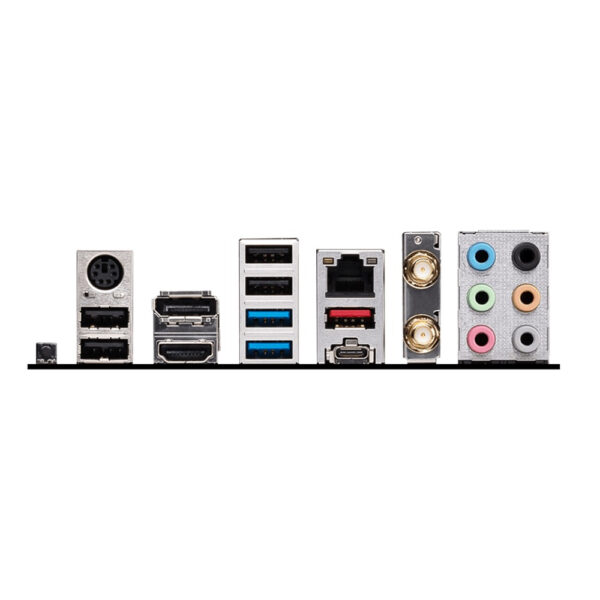

| Back Panel I/O | Keyboard/Mouse, DisplayPort, HDMI™, 2.5G LAN, Wi-Fi/Bluetooth, Audio, Flash BIOS Button USB Ports: 4x USB 2.0, 2x USB 3.2 Gen 1 (5Gbps Type-A), 1x USB 3.2 Gen 2 (10Gbps Type-A), 1x USB 3.2 Gen 2×2 (20Gbps Type-C) |
| Front USB Support | 4x USB 2.0, 4x USB 3.2 Gen 1 (5Gbps Type-A), 1x USB 3.2 Gen 2 (10Gbps Type-C) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| Internal I/O | ATX_PWR, 2x CPU_PWR, CPU Fan, Pump Fan, 6x System Fan, Front Audio, Front Panel, TPM 2.0 header, RGB & ARGB headers, USB headers |
| Special Features | – Supports Intel® 14th/13th/12th Gen CPUs – DDR5 7000+ MHz (OC) Dual Channel – 14+1+1 DRPS Power Design with 55A DrMOS – Extended Heatsink & M.2 Shield Frozr – PCIe 5.0, USB 3.2 Gen 2×2, Lightning Gen 4 M.2 – Intel Turbo USB 3.2 Gen 2 Controller – 2.5G LAN & Wi-Fi 6E – Audio Boost for premium sound |
| Dimensions | 243.84mm x 304.8mm |
| Warranty | 1 Year (Manufacturer Policy) |
