| Category | Specification |
|---|---|
| Chipset | AMD X870 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Memory | 4x DDR5 UDIMM, up to 256GB |
| Memory Speed | DDR5 8200 – 5600 (OC) / 5600 – 4800 (JEDEC) MT/s |
| Max OC (Ryzen 9000) | Up to 8200+ MT/s |
| Memory Features | Dual Channel, AMD EXPO™, Non-ECC, Un-buffered, CUDIMM (bypass only) |
| Onboard Graphics | HDMI 2.1 (4K@60Hz), USB4 Type-C with DP 1.4 (4K@60Hz) |
| Expansion Slots | 4x PCIe x16: • PCIe 5.0 x16 • PCIe 4.0 x4 • PCIe 3.0 x1 (x2) |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Storage | 3x M.2 (PCIe 5.0 & 4.0), 4x SATA 6Gb/s |
| RAID Support | M.2 NVMe RAID 0, 1 |
| USB Ports (Rear) | 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 1x USB 40Gbps Type-C |
| USB Ports (Front) | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Realtek® 8126VB 5G LAN |
| Wi-Fi & Bluetooth | Wi-Fi 7, Bluetooth 5.4 |
| Internal I/O | Power: ATX, CPU_PWR (x2), PCIE_PWR Fans: CPU, Combo, 6x Sys Fan RGB: 3x ARGB, 1x RGB USB: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C Others: JFP, JAUD, TPM, JDASH, JCI |
| LED Feature | 4x EZ Debug LED |

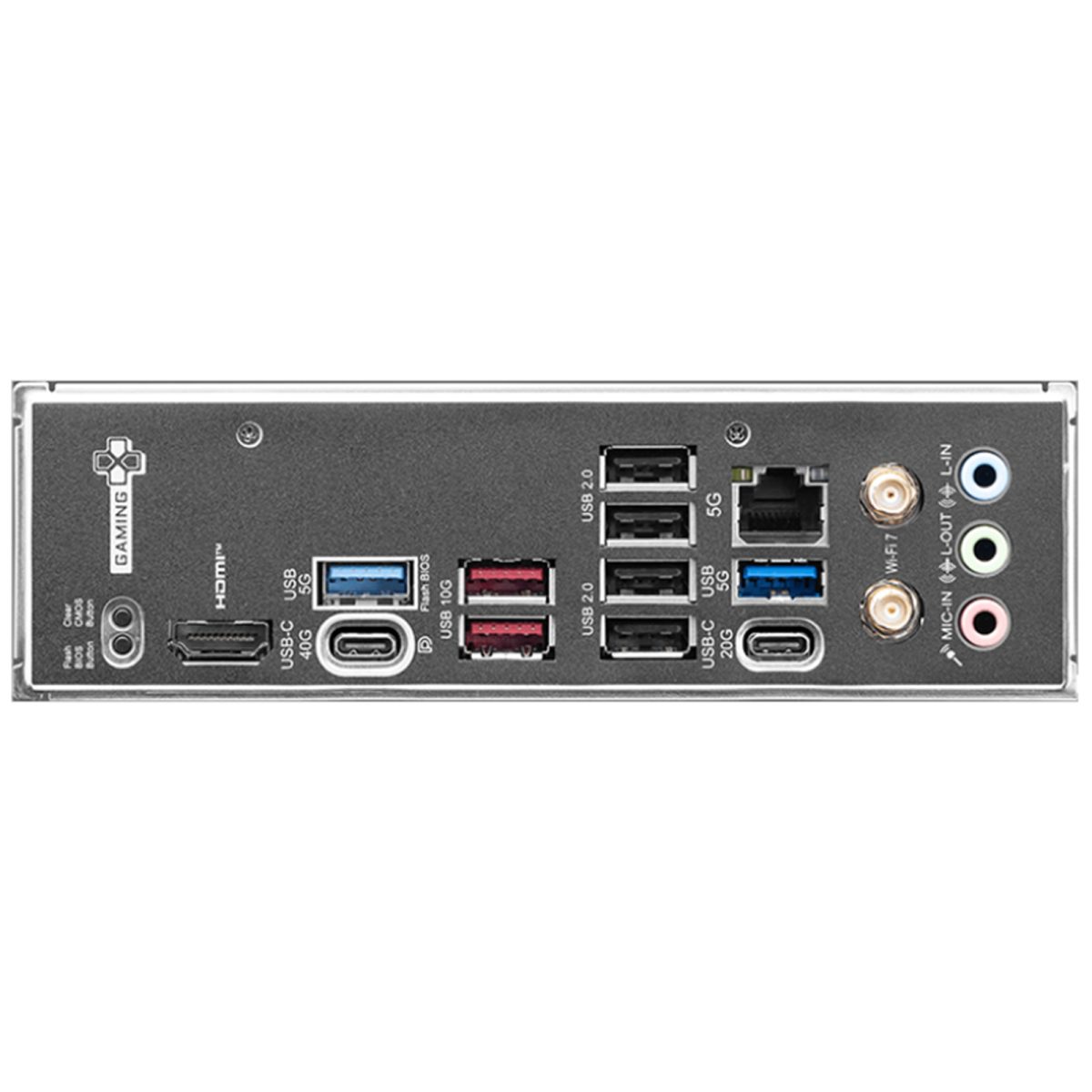

| Back Panel Ports | Clear CMOS, Flash BIOS, HDMI, USB 2.0 / 5Gbps / 10Gbps / 20Gbps / 40Gbps Type-C, LAN, Audio, Wi-Fi/Bluetooth |
| OS Support | Windows® 11 64-bit |
MSI MAG X870E Tomahawk WiFi DDR5 AM5 ATX Motherboard - BLACK | 911-7E59-006
Original price was: 145.000 KD.135.000 KDCurrent price is: 135.000 KD.
ASUS ROG MAXIMUS Z890 HERO MOTHERBOARD - BLACK | 90MB1ID0-M0EAY0
Original price was: 254.900 KD.236.900 KDCurrent price is: 236.900 KD.
-9%

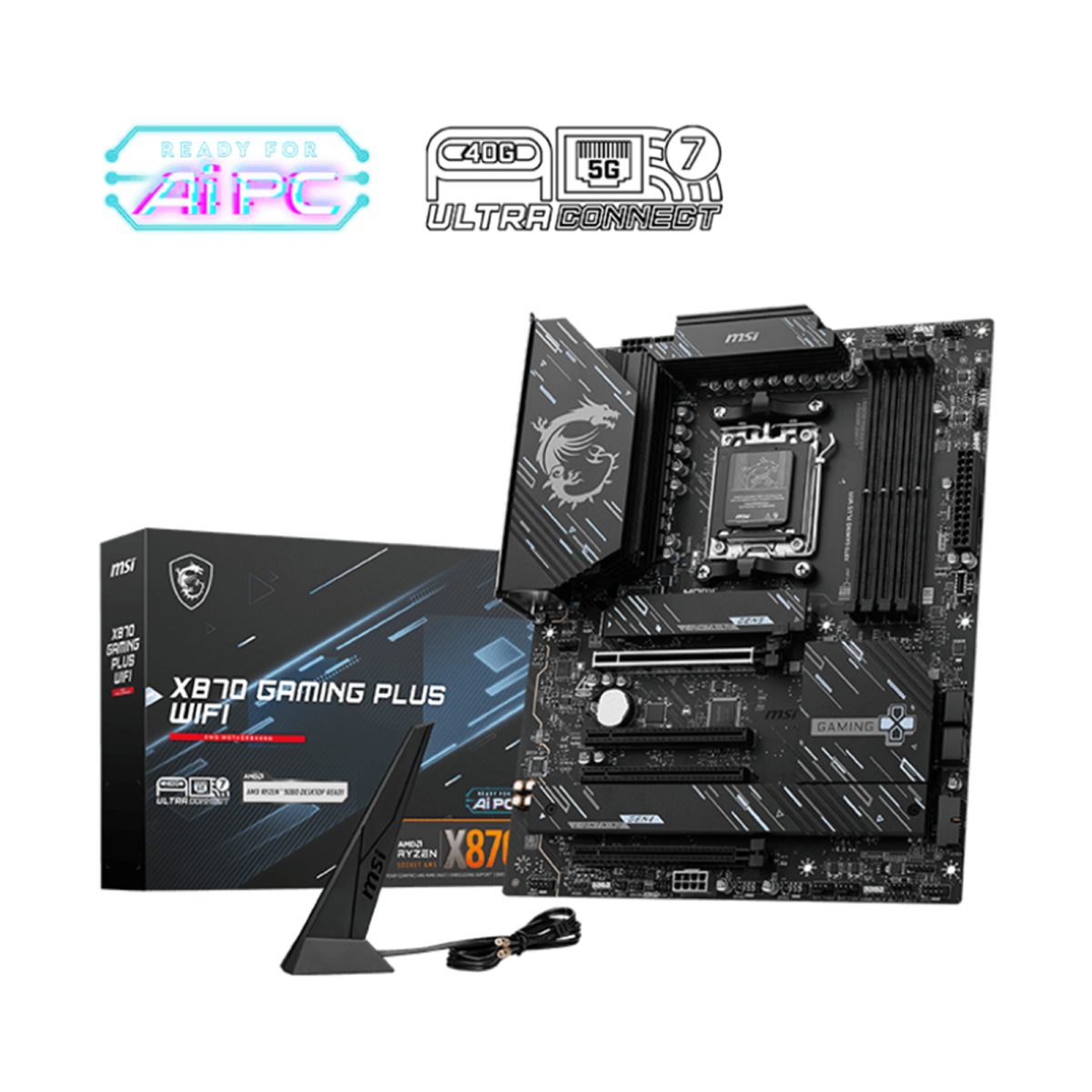

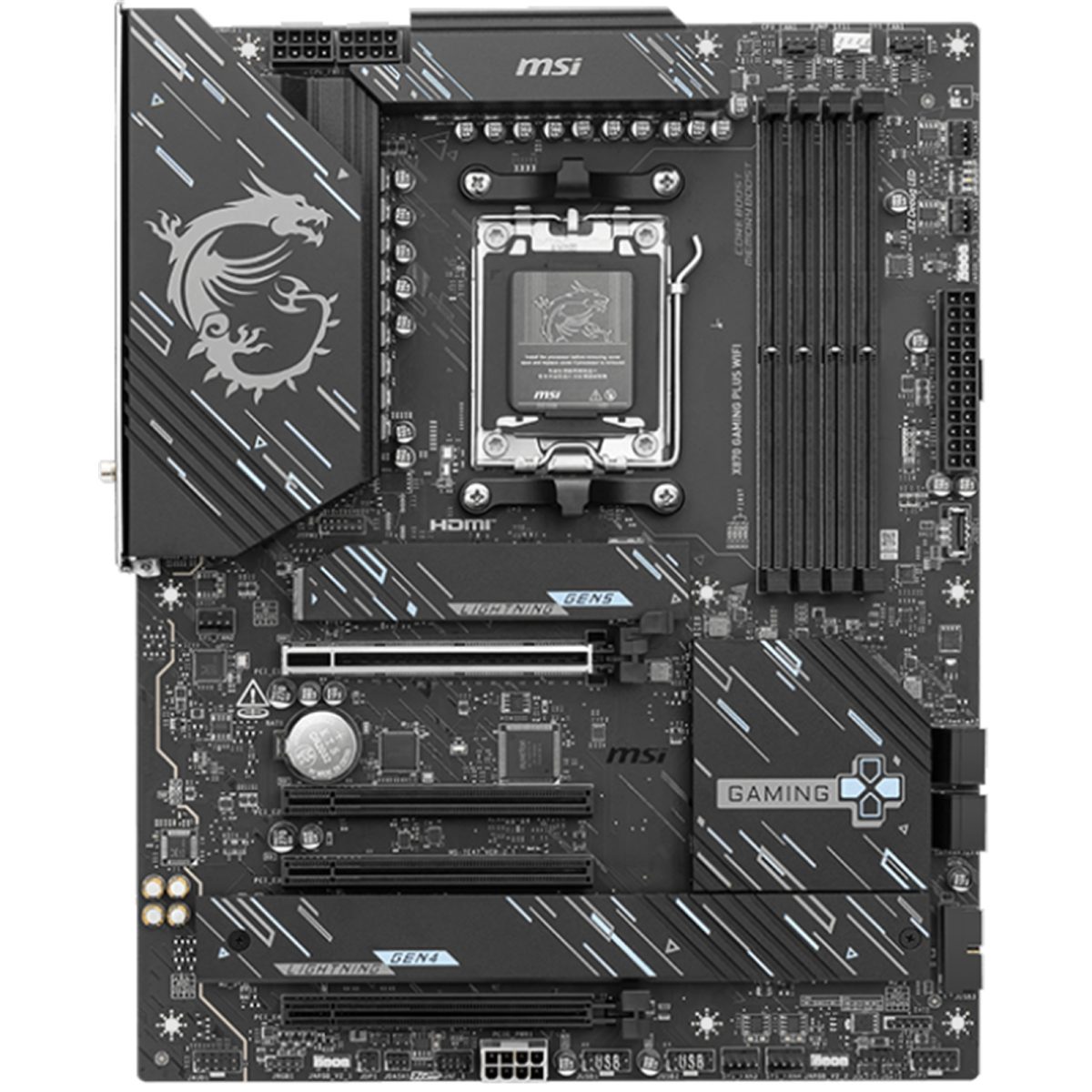

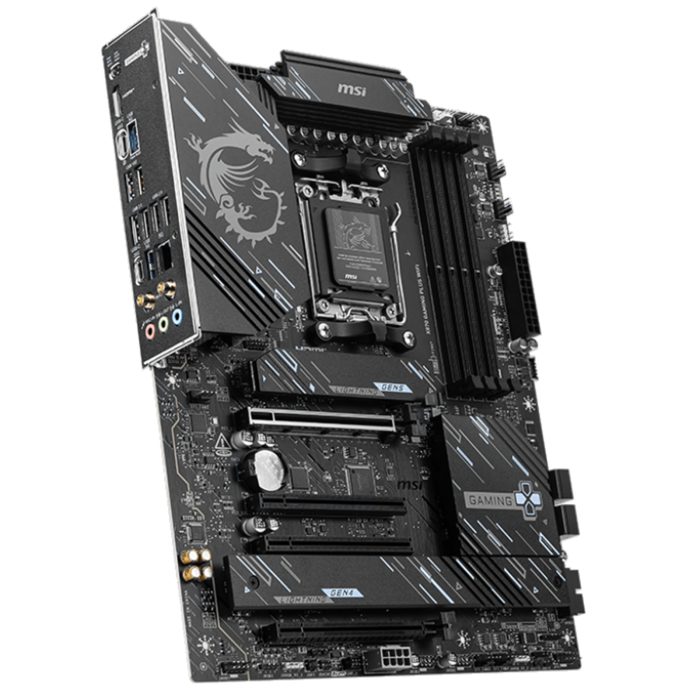

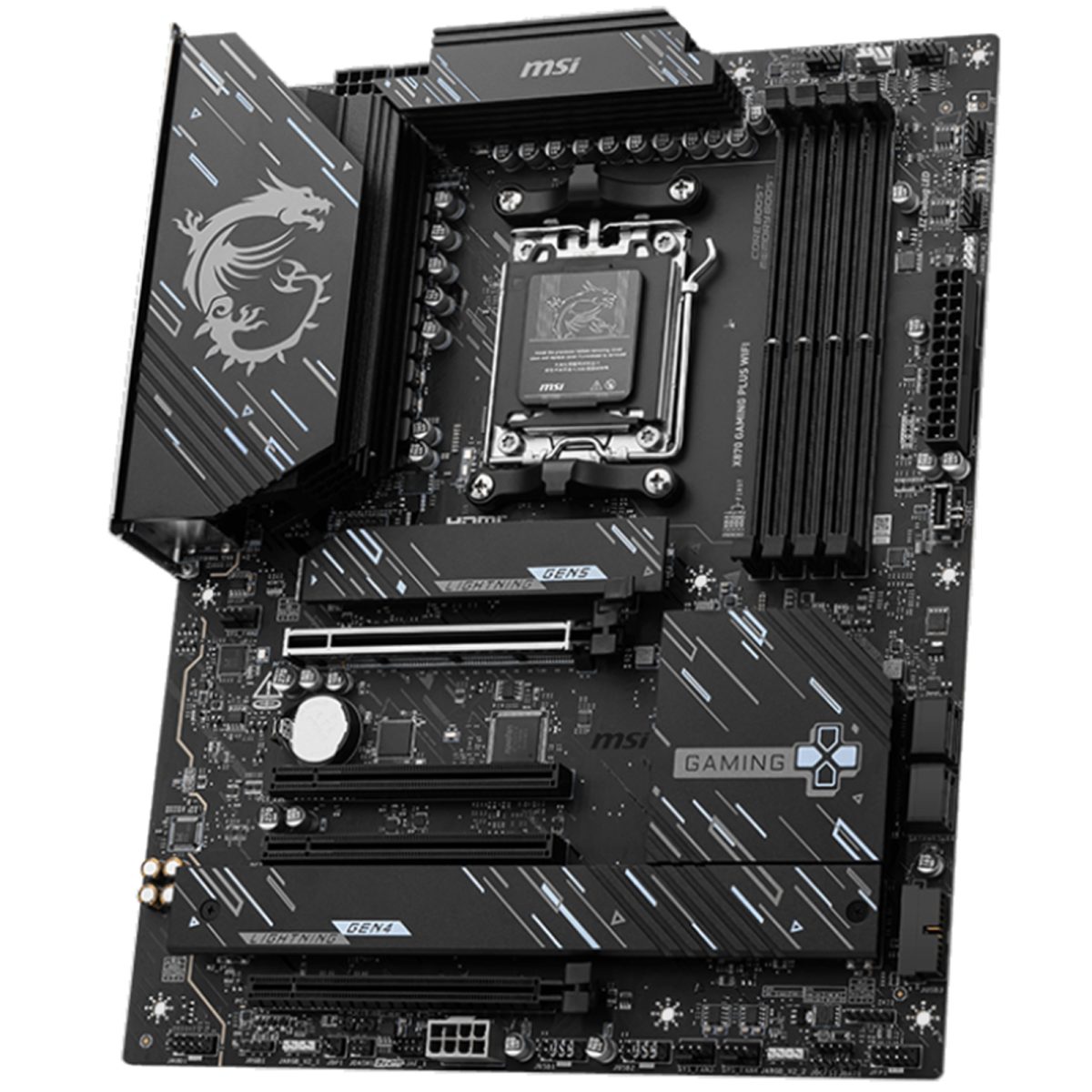

MSI X870 Gaming Plus WiFi Gaming Motherboard – BLACK | 911-7E47-011
Original price was: 109.000 KD.99.000 KDCurrent price is: 99.000 KD.
KEY FEATURES
-
MB Socket: AMD AM5
-
Chipset: Not Specified
-
Form Factor: ATX
-
Wireless Connectivity: Wi-Fi 7 (802.11be) + Bluetooth
-
Memory Type: DDR5
-
RAM Slots: 4 Slots
-
PCIe Version: PCIe 5.0
-
M.2 Connectors: 3
