Asus Intel ROG Maximus Z790 Hero BTF WiFi 7 DDR5 Gaming Motherboard:
| Specification | Details |
|---|---|
| Model No | Asus Intel ROG Maximus Z790 Hero BTF WiFi 7 DDR5 Gaming Motherboard |
| Part No | 90MB1H50-M0EAY0 |
| Chipset | Intel® Z790 Chipset |
| Form Factor | ATX (12″ × 9.6″ / 30.5 cm × 24.4 cm) |
| Socket Compatibility | Intel® LGA1700 for Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® Processors Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0* *Support depends on CPU type |
| Wireless & Bluetooth | Intel® Wi-Fi 7 (2×2, 2.4/5/6GHz, 320MHz, up to 5.76Gbps) Bluetooth® v5.4 |
| Ethernet | 1 × Intel® 2.5Gb Ethernet with ASUS LANGuard |
| Graphics | 1 × HDMI 2.1 (4K@60Hz) 2 × Intel® Thunderbolt™ 4 (USB-C) with DisplayPort/Thunderbolt video output |
| Memory | 4 × DIMM, DDR5 up to 7800+ (OC), Max. 128GB Dual Channel, Intel® XMP support, On-Die ECC |
| Storage | 5 × M.2 slots 4 × SATA 6Gb/s ports Supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |

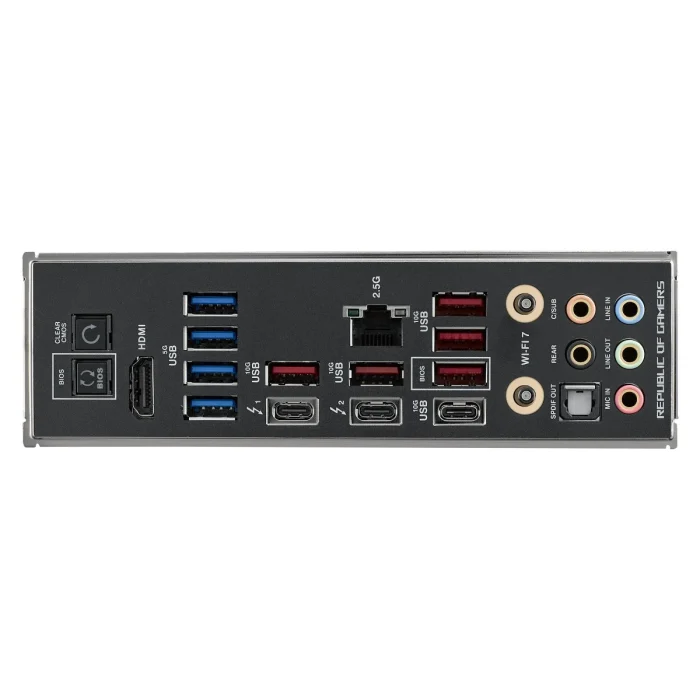

| Back Panel I/O Ports | 2 × Thunderbolt™ 4 USB-C 6 × USB 10Gbps (5 × Type-A, 1 × Type-C) 4 × USB 5Gbps (Type-A) 1 × HDMI 2.1 1 × Intel® 2.5Gb Ethernet 1 × Wi-Fi Module 5 × Gold-plated audio jacks 1 × Optical S/PDIF out BIOS FlashBack™ button Clear CMOS button |
| USB Ports (Front) | 1 × USB 20Gbps connector 2 × USB 5Gbps headers (4 ports) 2 × USB 2.0 headers (4 ports) |
| Expansion Slots | 1 × PCIe 5.0 x16 (x16 or x8) 1 × PCIe 4.0 x4 |
| Audio | ROG SupremeFX 7.1 HD Audio (ALC4082) with ESS® ES9218 QUAD DAC, 120dB SNR playback, 32-Bit/384kHz, gold-plated jacks, optical S/PDIF out |
| Internal I/O | Multiple fan, pump, RGB, USB, and power headers including CPU/AIO fan, W_PUMP+, ARGB, and Aura RGB |
| Special Features | Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, EZ DIY features, AURA Sync RGB |
| Package Contents | ARGB cable, 4 × SATA cables, thermal pad, DDR5 fan holder, Wi-Fi antenna, M.2 accessories, ROG stickers, key chain, VIP card, USB drive with drivers, quick start guide |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Warranty | 1 Year (As per Manufacturer Policy) |
