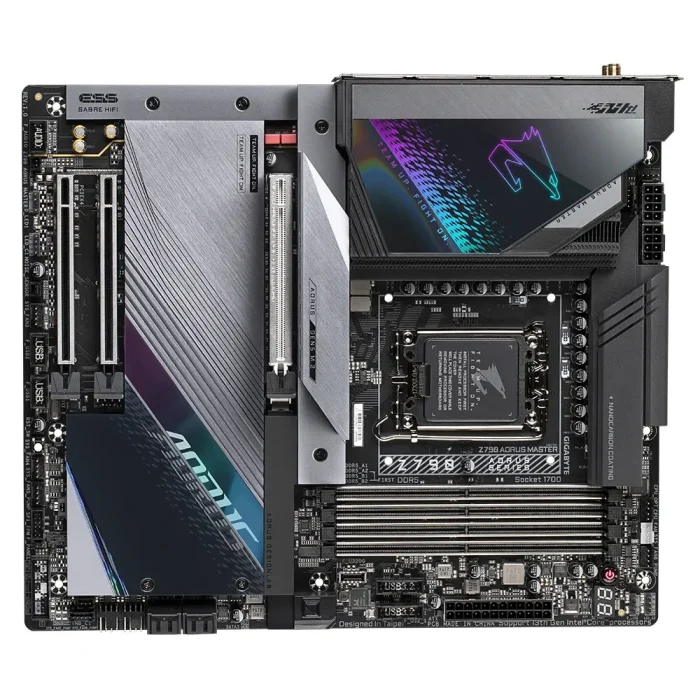

Gigabyte Z790 AORUS MASTER DDR5 E-ATX Gaming Motherboard

Original price was: 219.000 KD.Current price is: 199.000 KD.

Out of stock

Intel^® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Direct 20+1+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
Fins-Array III & M.2 Thermal Guard III：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch Plus：SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Hi-Fi Audio with DTS:X^® Ultra：ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC
Fast Networks：Marvell^® AQtion 10GbE LAN & Intel^® Wi-Fi 6E 802.11ax with DCT
Extended Connectivity：DP, USB-C^® 10Gb/s, Front and Dual Rear USB-C^® 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

Out of stock

Add to compare

Add to wishlist

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Description

Category	Details
CPU Support	LGA1700 socket: 12th & 13th Gen Intel® Core™, Pentium® Gold, Celeron®
Chipset	Intel® Z790 Express Chipset
Memory	DDR5 8000(O.C.) down to DDR5 4000 4x DIMM slots, up to 192 GB ECC (non-ECC mode), non-ECC, XMP support
Graphics	Integrated Intel® HD Graphics (based on CPU) 1x DisplayPort (4096×2304@60Hz, DP 1.2, HDCP 2.3)
Audio	Realtek® ALC1220-VB, ESS ES9118 DAC DSD audio, DTS:X Ultra, S/PDIF out, 2/4/5.1-channel
LAN	Marvell® AQtion AQC113C 10GbE
Wireless	Intel® Killer™ Wi-Fi 6E AX1690, Bluetooth 5.3
Expansion Slots	– 1x PCIe 5.0 x16 (x16, shares with M2C_CPU) – 1x PCIe 3.0 x4 – 1x PCIe 3.0 x1
Storage	M.2 Slots (Total 5): – 1x PCIe 5.0 x4 (CPU) – 1x PCIe 4.0 x4 (CPU) – 3x PCIe 4.0 x4 (Chipset, 1 with SATA support) SATA: 4x SATA 6Gb/s Supports RAID 0/1/5/10 (NVMe & SATA)
USB Ports	Back Panel: – 2x USB-C (Gen 2×2) – 1x USB-C (Gen 1) – 7x USB-A (Gen 2) – 4x USB-A (Gen 1) Internal: – 1x USB-C (Gen 2×2) – 4x USB 3.2 Gen 1 – 4x USB 2.0
Internal I/O	– 2x 8-pin CPU power – 1x 24-pin ATX – 9x fan headers (some hybrid with water cooling) – LED headers: 2x ARGB, 2x RGB – Noise & temp sensors – TPM, Thunderbolt headers

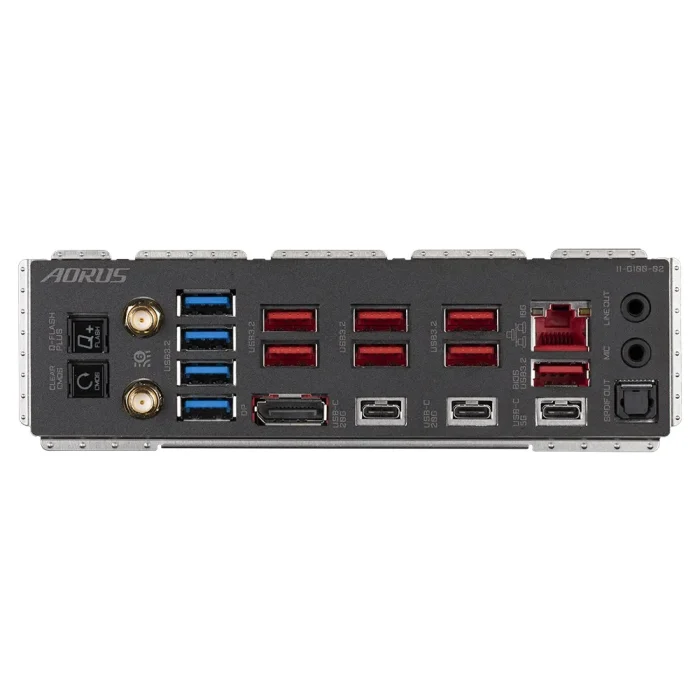

Back Panel	– Q-Flash Plus, Clear CMOS buttons – 2x Antenna connectors – DisplayPort – Audio: Optical S/PDIF, 2x jacks – LAN (10GbE) – USB ports as detailed above
Monitoring & BIOS	Fan/Voltage/Temp/Flow/Noise detection AMI UEFI BIOS, 256 Mbit flash
Software	GIGABYTE Control Center (GCC), Norton Internet Security, LAN management
OS Support	Windows 11 64-bit, Windows 10 64-bit
Form Factor	E-ATX (30.5cm x 26.0cm)
